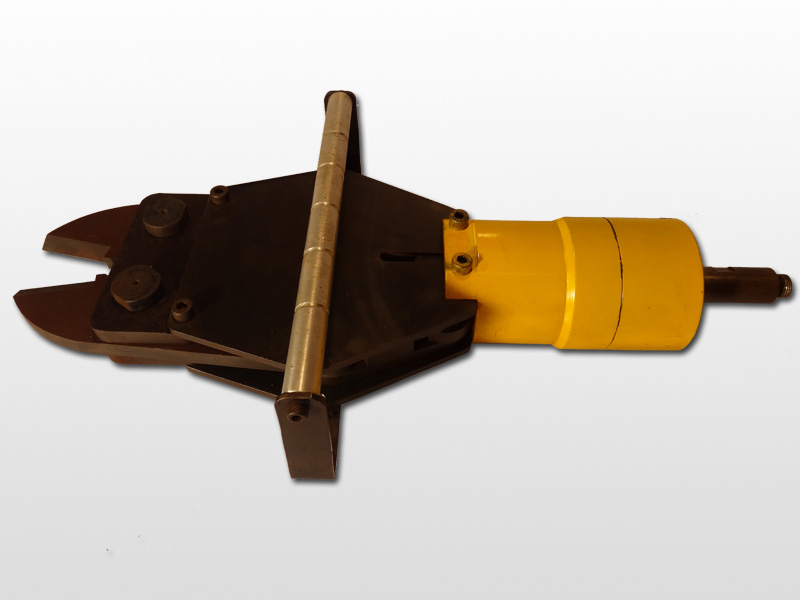

MODEL NO.: HRC – 17F
- Front Action Hydraulic Rod Cutter.
- Cutting range – Up to 17mm dia.
- Jaw thickness- 12mm, So this tool is suitable for narrow gap and short space
- Heavy duty high efficiency power pack used.
- Can be used with Air- Hydraulic pump
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|

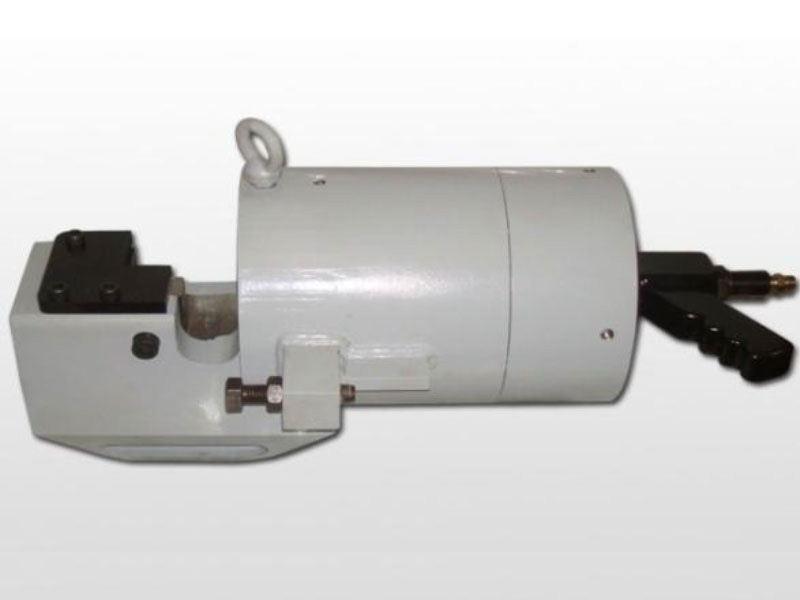

MODEL NO.: HRC –
50S
- Heavy duty Hydraulic Rod Cutter.
- Cutting range – Up to 40mm dia.
- Standard cutter, ‘V’ cutter or clean cutter fitted as per Requirement.
- Heavy duty high efficiency power pack used.
|
|
|
|
|
| |
|
GENERAL INSTRUCTIONS ABOUT CUTTING
- The speed of the cut will be in direct proportion to the flow of hydraulic fluid produced by the pump of the Power Pack unit. When selecting power unit you need to be able to select the system that will achieve the cutting speed as required.
- The cutting pressure varies also depends upon the type of cutter used.
- Cutting time required more for hot & soft materials than cold & hard materials.
|
|
|
|
|
|
|
| |
