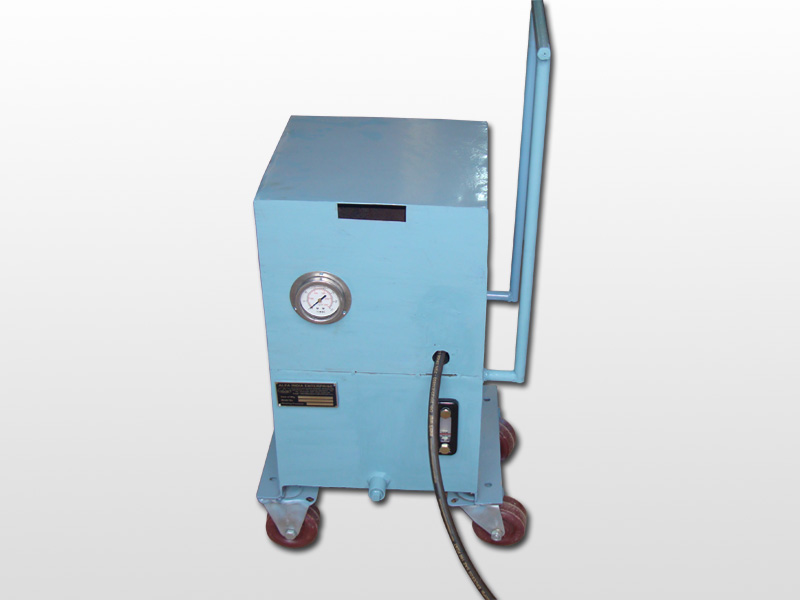

CLICK TO ENLARGE
FEATURES
  • Hydraulic fittings are mounted on the reservoir tank for easy maintenance or replacement
  • Oil level gauge fitted in side of the tank
  • Fitted with safety pressure relief valve
  • Portable
  • Fully covered also available as per user requirement
  • Operation – Direction Controlled solenoid valve operated by foot switch or hand switch
  • Power Supply – 440V for motor, 110/220V for solenoid valve

There are two categories of power packs are available with us.
CATEGORY A: - Working Pressure - 315 bar (Max)
TYPE Q N P
L/min KW Bar
APP-37 3.7 2.8 315
APP-58 5.8 4.0 315

CATEGORY B: - Working Pressure - 550 bar (Max)
TYPE Q N P
L/min KW Bar
BPP-30 3.0 2.2 550
BPP-58 5.8 4 550

Air Hydraulic Pump:
Model No Operated With Cylinder Oil Capacity
(C.C.)		 Pressure Range
(Bar)		 Operating Air Pressure
(Kgf/cm2)		 Output Flow Rate
(No Load)
C.C./MM
PAHP-70 Single Acting 1200 700 6-8 450

NOTE
  1. Cutting speed depends on flow rate of the pump
  2. We can also design and manufacture different types of power pack, apart from the above mentioned category based on the cutting speed & working pressure required.
  3. For design calculation we need following information:-
    • Diameter of the material
    • Tensile strength of the material
    • Hardness of the material
