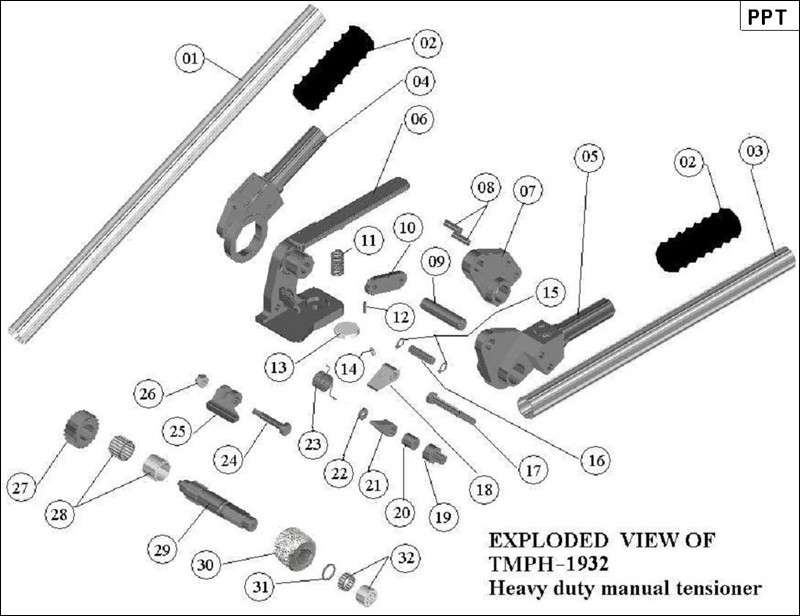

INDEX
|
Part Name
|
Quantity
|
|
|
|
|
|
01
|
TENSIONING HANDLE PIPE
|
1
|
|
|
|
|
|
02
|
RUBBER GRIP FOR HANDLE
|
2
|
|
|
|
|
|
03
|
FIXED HANDLE PIPE
|
1
|
|
|
|
|
|
04
|
TENSIONING HANDLE HEAD
|
1
|
|
|
|
|
|
05
|
FIXED HANDLE HEAD ASSEMBLY
|
1
|
|
|
|
|
|
06
|
ROLLER FRAME
|
1
|
|
|
|
|
|
07
|
LINK ARM PLATE
|
1
|
|
|
|
|
|
08
|
LOCATING PINS FOR FIXED HANDLE HEAD (ITEMS 1 &
2)
|
2
|
|
|
|
|
|
09
|
SPINDLE FOR ROLLER FRAME
|
1
|
|
|
|
|
|
10
|
LINK
PLATE
|
1
|
|
|
|
|
|
11
|
PRESSURE
SPRING
|
1
|
|
|
|
|
|
12
|
‘C’
PIN FOR PRESSURE PAD
|
1
|
|
|
|
|
|
13
|
PRESSURE
PAD
|
1
|
|
|
|
|
|
14
|
HANDLE
PAWL SPRING
|
1
|
|
|
|
|
|
15
|
CIRCLIPS
FOR HANDLE PAWL PIN
|
2
|
|
|
|
|
|
16
|
PIN
FOR HANDLE PAWL
|
1
|
|
|
|
|
|
17
|
BOLT
FOR LOCKING PAWL
|
1
|
|
|
|
|
|
18
|
HANDLE
PAWL
|
1
|
|
|
|
|
|
19
|
BUSH
FOR LOCKING PAWL
|
1
|
|
|
|
|
|
20
|
BUSH
FOR TORSION SPRING (FOR LOCKING PAWL)
|
1
|
|
|
|
|
|
21
|
LOCKING
PAWL
|
1
|
|
|
|
|
|
22
|
WASHER
FOR LOCKING PAWL
|
1
|
|
|
|
|
|
23
|
TORSION
SPRING FOR LOCKING PAWL
|
1
|
|
|
|
|
|
24
|
BOLT
FOR STRAP GUIDE
|
1
|
|
|
|
|
|
25
|
STRAP
GUIDE
|
1
|
|
|
|
|
|
26
|
NUT
FOR STRAP GUIDE BOLT
|
1
|
|
|
|
|
|
27
|
RATCHET
|
1
|
|
|
|
|
|
28
|
NEEDLE
ROLLER BEARING (WITH OUTER RACE ONLY BOTH
ENDS OPEN)
HK2RS-2020
|
1
|
|
|
|
|
|
29
|
SPINDLE
FOR RATCHET AND FEED WHEEL
|
1
|
|
|
|
|
|
30
|
FEED
WHEEL
|
1
|
|
|
|
|
|
31
|
LIP
SEAL FOR NEEDLE BEARING BKRS-1614
|
1
|
|
|
|
|
|
32
|
NEEDLE
ROLLER BEARING (WITH OUTER RACE ONLY, ONE
END BLIND AND LIP SEAL), BKRS-1614
|
1
|
