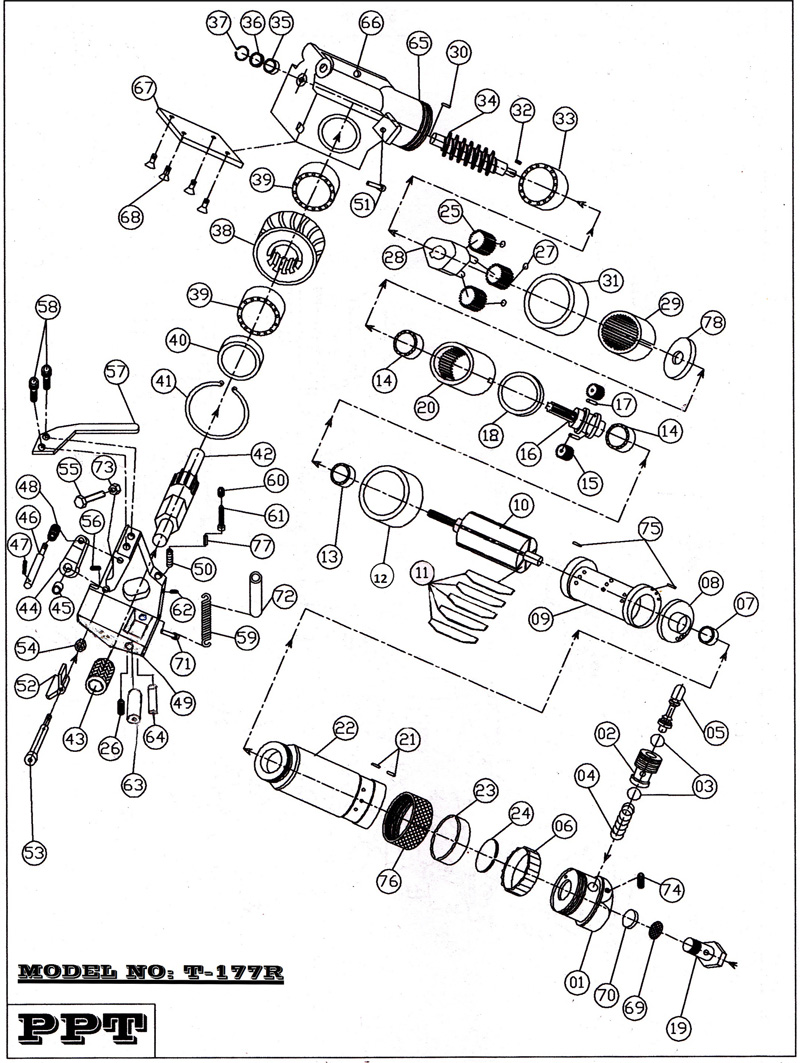

PART
INDEX
|
PART
NAME
|
QTY
|
|
1
|
BACK
HEAD
|
1
|
|
2
|
VALVE
POPPET
|
1
|
|
3
|
VALVE
`O` RING
|
2
|
|
4
|
VALVE
SPRING
|
1
|
|
5
|
VALVE
BODY
|
1
|
|
6
|
CONTROL
RING
|
1
|
|
7
|
BEARING
NO- 1
|
1
|
|
8
|
END
PLATE-1
|
1
|
|
9
|
AIR
CYLINDER
|
1
|
|
10
|
ROTER(&
40 DP SUN PINION)
|
1
|
|
11
|
ROTER
VANES
|
5
|
|
12
|
END
PLATE-2
|
1
|
|
13
|
BEARING
NO- 2
|
1
|
|
14
|
BEARING
NO-3
|
2
|
|
15
|
40
DP PLANET PINIONS (WITH BUSH)
|
2
|
|
16
|
40
DP PLANET HOLDER(& 1M SUN PINION)
|
1
|
|
17
|
PINS
FOR 40 DP PLANETS
|
2
|
|
18
|
RETAINER
RING (FOR 40 DP PLANET PINS)
|
1
|
|
19
|
AIR
INLET NIPPLE ADAPTOR
|
1
|
|
20
|
40
DP INTERNAL GEAR
|
1
|
|
21
|
LOCKING
PIN (FOR 40 DP INTERNAL GEAR)
|
2
|
|
22
|
BODY
(FOR MOTOR & 40 DP GEARING)
|
1
|
|
23
|
SILENCER
(FOR AIR EXHAUST)
|
1
|
|
24
|
WIRE
LOCK(FOR SILENCER)
|
1
|
|
25
|
1
MODULE PLANET PINIONS
|
3
|
|
26
|
"C"
PIN FOR LOWER ROLLER SPINDLE
|
1
|
|
27
|
WIRE
LOCK(FOR 1 MODULE PLANETS)
|
3
|
|
28
|
PLANET
HOLDER(FOR 1 M PLANETS)
|
1
|
|
29
|
1
MODULE INTERNAL GEAR
|
1
|
|
30
|
LOCKING
PINS (FOR 1 M INTERNAL GEAR)
|
2
|
|
31
|
SPACER
(FOR BEARING NO- 4)
|
1
|
|
32
|
KEY
BAR (FOR WORM SHAFT)
|
1
|
|
33
|
BEARING
NO-4
|
1
|
|
34
|
WORM
SHAFT
|
1
|
|
35
|
BEARING
NO-5
|
1
|
|
36
|
BEARING
COVER-1(FOR BEARING NO-5)
|
1
|
|
37
|
CIRCLIP
(FOR BEARING COVER -1)
|
1
|
|
38
|
WORM
WHEEL
|
1
|
|
39
|
BEARING
NO-6
|
2
|
|
40
|
BEARING
COVER-1(FOR BEARING NO-6)
|
1
|
|
41
|
CIRCLIP
(FOR BEARING COVER -2)
|
1
|
|
42
|
SPINDLE
(FOR FEED & WORM WHEEL)
|
1
|
|
43
|
FEED
WHEEL
|
1
|
|
44
|
LINK
ARM
|
1
|
|
45
|
OLITE
BUSH (FOR LINK ARM)
|
1
|
|
46
|
SPINDLE
(FOR LINK ARM)
|
1
|
|
47
|
`C`
PIN (FOR SPINDLE LOCKING)
|
1
|
|
48
|
ROUND
NUT(FOR SPINDLE)
|
1
|
|
49
|
ROLLER
FRAME
|
1
|
|
50
|
SPRING(FOR
ADJUSTING PIN)
|
1
|
|
51
|
ANCHOR
SCREW-1 FOR TENSION SPRING
|
1
|
|
52
|
STRAP
GUIDE
|
1
|
|
53
|
SPINDLE(FOR
STRAP GUIDE)
|
1
|
|
54
|
NUT(FOR
STRAP GUIDE SPINDLE)
|
1
|
|
55
|
STRAP
GUIDE ADJUSTING BOLT
|
1
|
|
56
|
GRUB
SCREW (FOR STRAP GUIDE SPINDLE)
|
1
|
|
57
|
HANDLE
(FOR ROLLER FRAME)
|
1
|
|
58
|
SCREWS(FOR
HANDLE)
|
2
|
|
59
|
TENSION
SPRING (FEED WHEEL GRIP)
|
1
|
|
60
|
HEXAGONAL
ADJUSTING PIN
|
1
|
|
61
|
ADJUSTING
NUT(FOR HEX. ADJ. PIN)
|
1
|
|
62
|
GRUB
SCREW (FOR ADJUSTING NUT)
|
1
|
|
63
|
LOWER
ROLLER
|
1
|
|
64
|
LOWER
ROLLER SPINDLE
|
1
|
|
65
|
HOUSING
(FOR WORM & WHEEL)
|
1
|
|
66
|
`C`
PIN (FOR HANGING FROM BALANCER)
|
1
|
|
67
|
BOTTOM
COVER(FOR HOUSING)
|
1
|
|
68
|
SCREWS(FOR
BOTTOM COVER)
|
4
|
|
69
|
AIR
FILTER(FOR BACK HEAD)
|
1
|
|
70
|
DUST
CAP(FOR BACK HEAD)
|
1
|
|
71
|
ANCHOR
PIN FOR TENSION SPRING
|
1
|
|
72
|
SPRING
COVER
|
1
|
|
73
|
STRAP
GUIDE ADJUSTING NUT
|
1
|
|
74
|
GRUB
SCREW (FOR ADAPTOR LOCKING)
|
1
|
|
75
|
PIN(FOR
END PLATE LOCKING)
|
2
|
|
76
|
LOCKING
CAP
|
1
|
|
77
|
STOPPER
PIN
|
1
|
|
78
|
COVER
PLATE
|
1
|
