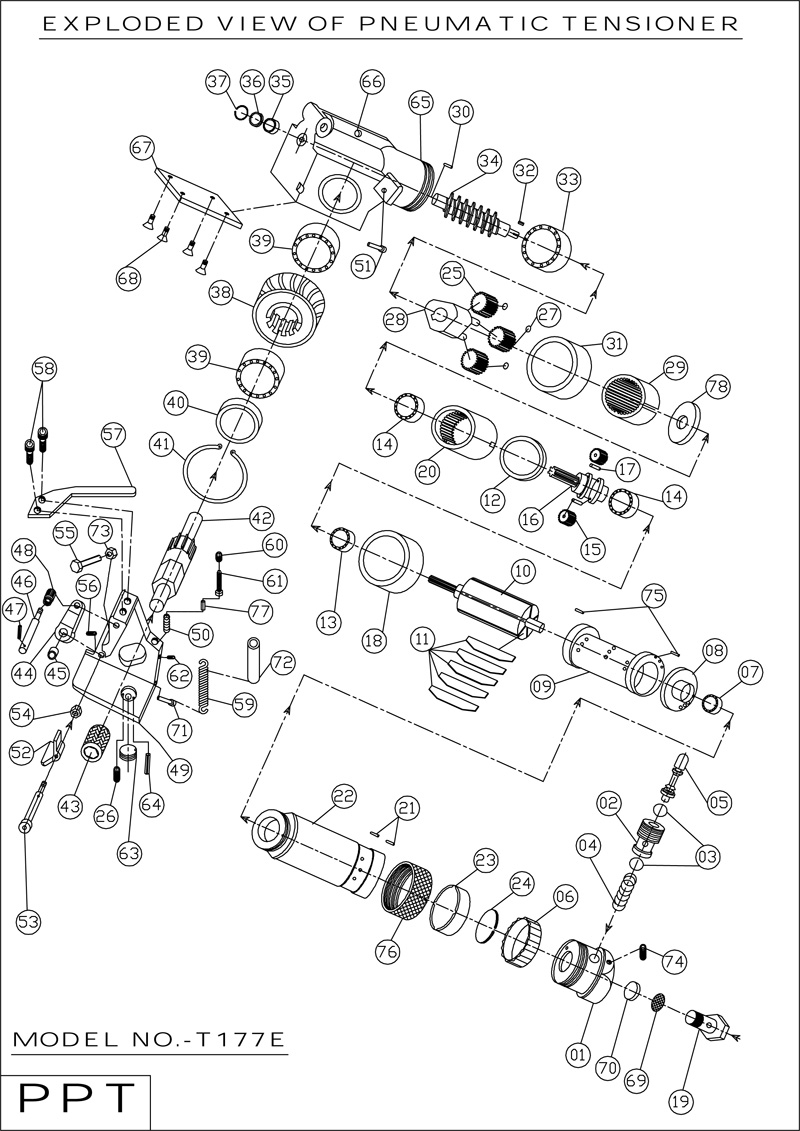

| PART
INDEX |
DESCRIPTION |
QTY |
| 1 |
BACK
HEAD |
1 |
| 2 |
*
VALVE POPPET |
1 |
| 3 |
*
VALVE `O` RING |
2 |
| 4 |
VALVE
SPRING |
1 |
| 5 |
VALVE
BODY |
1 |
| 6 |
CONTROL
RING |
1 |
| 7 |
#
BEARING NO- 1 |
1 |
| 8 |
END
PLATE-1 |
1 |
| 9 |
AIR
CYLINDER |
1 |
| 10 |
#
ROTER(& 40 DP SUN PINION) |
1 |
| 11 |
#
ROTER VANES |
5 |
| 12 |
RETAINER
RING (FOR 40 DP PLANET PINS) |
1 |
| 13 |
#
BEARING NO- 2 |
1 |
| 14 |
#
BEARING NO-3 |
2 |
| 15 |
#
40 DP PLANET PINIONS (WITH BUSH) |
2 |
| 16 |
#
40 DP PLANET HOLDER(& 1M SUN PINION) |
1 |
| 17 |
#
PINS FOR 40 DP PLANETS |
2 |
| 18 |
END
PLATE-2 |
1 |
| 19 |
AIR
INLET NIPPLE ADAPTOR |
1 |
| 20 |
#
40 DP INTERNAL GEAR |
1 |
| 21 |
LOCKING
PIN (FOR 40 DP INTERNAL GEAR) |
2 |
| 22 |
BODY
(FOR MOTOR & 40 DP GEARING) |
1 |
| 23 |
SILENCER
(FOR AIR EXHAUST) |
1 |
| 24 |
WIRE
LOCK(FOR SILENCER) |
1 |
| 25 |
#
1 MODULE PLANET PINIONS |
3 |
| 26 |
#
PRESSURE PAD ADJUSTING SCREW |
1 |
| 27 |
WIRE
LOCK(FOR 1 MODULE PLANETS) |
3 |
| 28 |
#
PLANET HOLDER(FOR 1 M PLANETS) |
1 |
| 29 |
1
MODULE INTERNAL GEAR |
1 |
| 30 |
LOCKING
PINS (FOR 1 M INTERNAL GEAR) |
2 |
| 31 |
SPACER
(FOR BEARING NO- 4) |
1 |
| 32 |
KEY
BAR (FOR WORM SHAFT) |
1 |
| 33 |
BEARING
NO-4 |
1 |
| 34 |
WORM
SHAFT |
1 |
| 35 |
BEARING
NO-5 |
1 |
| 36 |
BEARING
COVER-1(FOR BEARING NO-5) |
1 |
| 37 |
CIRCLIP
(FOR BEARING COVER -1) |
1 |
| 38 |
#
WORM WHEEL |
1 |
| 39 |
BEARING
NO-6 |
2 |
| 40 |
BEARING
COVER-1(FOR BEARING NO-6) |
1 |
| 41 |
CIRCLIP
(FOR BEARING COVER -2) |
1 |
| 42 |
SPINDLE
(FOR FEED & WORM WHEEL) |
1 |
| 43 |
*
FEED WHEEL |
1 |
| 44 |
LINK
ARM |
1 |
| 45 |
OLITE
BUSH (FOR LINK ARM) |
1 |
| 46 |
SPINDLE
(FOR LINK ARM) |
1 |
| 47 |
`C`
PIN (FOR SPINDLE LOCKING) |
1 |
| 48 |
ROUND
NUT(FOR SPINDLE) |
1 |
| 49 |
ROLLER
FRAME |
1 |
| 50 |
#
SPRING(FOR ADJUSTING PIN) |
1 |
| 51 |
ANCHOR
SCREW-1 FOR TENSION SPRING |
1 |
| 52 |
#
STRAP GUIDE |
1 |
| 53 |
SPINDLE(FOR
STRAP GUIDE) |
1 |
| 54 |
NUT(FOR
STRAP GUIDE SPINDLE) |
1 |
| 55 |
#
STRAP GUIDE ADJUSTING BOLT |
1 |
| 56 |
GRUB
SCREW (FOR STRAP GUIDE SPINDLE) |
1 |
| 57 |
HANDLE
(FOR ROLLER FRAME) |
1 |
| 58 |
SCREWS(FOR
HANDLE) |
2 |
| 59 |
#
TENSION SPRING (FEED WHEEL GRIP) |
1 |
| 60 |
HEXAGONAL
ADJUSTING PIN |
1 |
| 61 |
ADJUSTING
NUT(FOR HEX. ADJ. PIN) |
1 |
| 62 |
GRUB
SCREW (FOR ADJUSTING NUT) |
1 |
| 63 |
*
PRESSURE PAD |
1 |
| 64 |
`C`
PIN (FOR PRESSURE PAD LOCKING) |
1 |
| 65 |
HOUSING
(FOR WORM & WHEEL) |
1 |
| 66 |
`C`
PIN (FOR HANGING FROM BALANCER) |
1 |
| 67 |
BOTTOM
COVER(FOR HOUSING) |
1 |
| 68 |
#
SCREWS(FOR BOTTOM COVER) |
4 |
| 69 |
AIR
FILTER(FOR BACK HEAD) |
1 |
| 70 |
DUST
CAP(FOR BACK HEAD) |
1 |
| 71 |
ANCHOR
PIN FOR TENSION SPRING |
1 |
| 72 |
SPRING
COVER |
1 |
| 73 |
#
STRAP GUIDE ADJUSTING NUT |
1 |
| 74 |
GRUB
SCREW (FOR ADAPTOR LOCKING) |
1 |
| 75 |
PIN(FOR
END PLATE LOCKING) |
2 |
| 76 |
LOCKING
CAP |
1 |
| 77 |
STOPPER
PIN |
1 |
| 78 |
COVER
PLATE |
1 |
