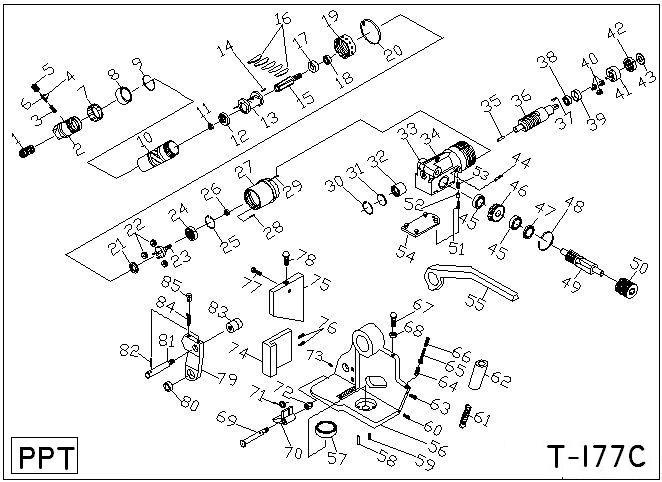

INDEX
|
PART NAME
|
QTY.
|
|
01
|
Helicoil
|
1
|
|
02
|
Back-Head
|
1
|
|
03
|
Spring
|
1
|
|
04
|
‘O’
Ring
|
2
|
|
05
|
Valve
Body
|
1
|
|
06
|
Valve
Poppet
|
1
|
|
07
|
Control
Ring
|
1
|
|
08
|
Silencer(For
Air Exhaust)
|
1
|
|
09
|
Silencer
Locking Spring
|
1
|
|
10
|
Body
|
1
|
|
11
|
Bearing
No.-1
|
1
|
|
12
|
End
Plate No. 1
|
1
|
|
13
|
Cylinder(2
¼”)
|
1
|
|
14
|
Pin
for End Plate No. 1 & 2( 2 mm Dia.)
|
2
|
|
15
|
Rotor(2
¼”)
|
1
|
|
16
|
Rotor
Vanes(2 ¼”)
|
5
|
|
17
|
End
Plate No. 2
|
1
|
|
18
|
Bearing
No.-2(6000-ZZ)
|
1
|
|
19
|
Tightening
Nut
|
1
|
|
20
|
Tightening
Nut Locking Spring
|
1
|
|
21
|
Bearing
Cover Plate
|
1
|
|
22
|
Idle
Gear(40 DP)
|
3
|
|
23
|
Gear
Box(40 DP)
|
1
|
|
24
|
Internal
Gear No. 1(40 DP)
|
1
|
|
25
|
Circlip
For Bearing No. 3
|
1
|
|
26
|
Bearing
No.-3
|
1
|
|
27
|
Bearing
Housing No.-1
|
1
|
|
28
|
Pin
For Internal Gear Locking (3/32” Dia.)
|
1
|
|
29
|
‘C’
Pin For Housing Locking with Body (4 mm
Dia.)
|
1
|
|
30
|
Circlip(For
Bearing Cover-1)
|
1
|
|
31
|
Cover
Plate(For Bearing No.-5)
|
1
|
|
32
|
Needle
Bearing No-5(B-78)
|
1
|
|
33
|
Worm
Housing
|
1
|
|
34
|
‘C’
Pin For Housing From Balancer
|
1
|
|
35
|
Pin
(For 1M Internal Gear-2 mm Dia.)
|
1
|
|
36
|
Worm(2
Start)
|
1
|
|
37
|
Worm
Key(Woodruff)
|
1
|
|
38
|
Bearing
NO.-4(Thrust Bearing: ACD-117)
|
1
|
|
39
|
Ring
|
1
|
|
40
|
Idle
Gear(1 M)
|
3
|
|
41
|
Gear
Box No. 2(1 M) With Pin Fitting
|
1
|
|
42
|
Internal
Gear No.-2(1 M)
|
1
|
|
43
|
Retainer
Plate(For 1M)
|
1
|
|
44
|
Anchor
Screw-1 For Tension Spring
|
1
|
|
45
|
Bearing
No-6(EE-6)
|
2
|
|
46
|
Worm
Wheel(2 Start)
|
1
|
|
47
|
Bearing
Cover Plate
|
1
|
|
48
|
Circlip
(For Bearing Cover- 2)
|
1
|
|
49
|
Worm
Wheel Spindle
|
1
|
|
50
|
Feed
Wheel
|
1
|
|
51
|
Pin
(For Bottom Plate)
|
1
|
|
52
|
Bush
|
1
|
|
53
|
Spring
|
1
|
|
54
|
Bottom
Plate
|
1
|
|
55
|
Cam
Handle
|
1
|
|
56
|
Roller
Frame
|
1
|
|
57
|
Pressure
Pad
|
1
|
|
58
|
‘C’
Pin(For Pressure Pad Locking)
|
1
|
|
59
|
Pressure
Pad Adjusting Screw
|
1
|
|
60
|
Anchor
Screw-2 For Tension Spring
|
1
|
|
61
|
Tension
Spring(For Feed Wheel Grip)
|
1
|
|
62
|
Spring
Cover
|
1
|
|
63
|
Grub
Screw(For Adjusting Nut)
|
1
|
|
64
|
Spring
(For Hexagonal Adjusting Pin)
|
1
|
|
65
|
Hexagonal
Adjusting Pin
|
1
|
|
66
|
Adjusting
Nut(For Hexagonal Adjusting
Pin)
|
1
|
|
67
|
Adjusting
Bolt(For Feed Wheel Clearance)
|
1
|
|
68
|
Adjusting
Bolt Locking Nut
|
1
|
|
69
|
Strap
Guide Bolt
|
1
|
|
70
|
Strap
Guide
|
1
|
|
71
|
Spring
For Strap Guide
|
1
|
|
72
|
Nut
For Strap Guide Bolt
|
1
|
|
73
|
Grub
Screw(For Strap Guide Bolt)
|
1
|
|
74
|
Shearing
Blade Guide
|
1
|
|
75
|
Shearing
Blade
|
1
|
|
76
|
¼
B.S.W. Bolt(For Shearing Blade Guide
Locking)
|
2
|
|
77
|
3/16”
B.S.W. /2 BA
Allen Bolt(For Shearing Blade
Spring)
|
1
|
|
78
|
Hex.
Bolt(For Shearing Blade Movement)
|
1
|
|
79
|
Spindle
Link
|
1
|
|
80
|
Spindle
Link Bush
|
1
|
|
81
|
Spindle
|
1
|
|
82
|
‘C’
Pin For Spindle locking
|
1
|
|
83
|
Spindle
Nut
|
1
|
|
84
|
Shearing
Blade
Spring
|
1
|
|
85
|
Cap
|
1
|
