MODELNO.: SPSR – 32H

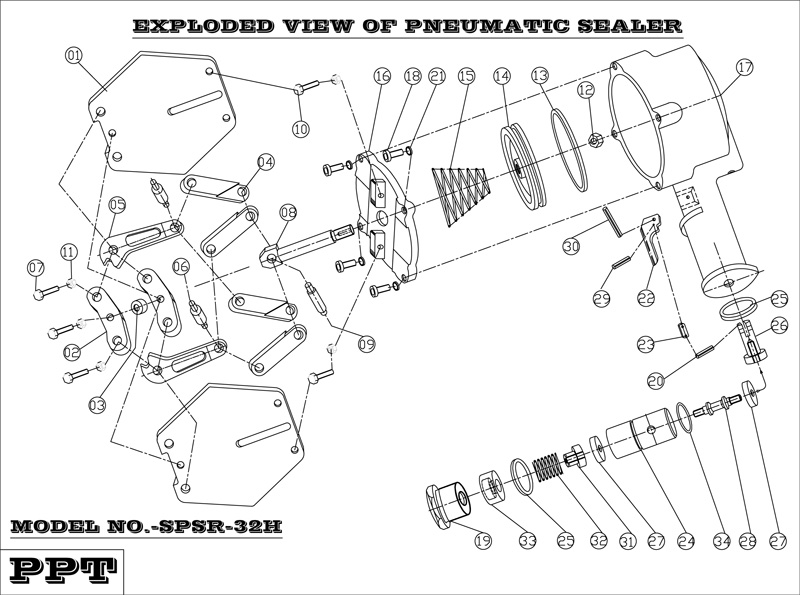

PART LIST OF SPSR – 32H
INDEX NO. PART NAME QTY
1 SIDE PLATE 2
2 NOTCHER PLATE (TYPE-A) 2
3 SPACER FOR NOTCHER &  SIDE PLATE 1
4 LINKS 4
5 JAW 2
6 JAW PIN 2
7 BOLT FOR JAW ,NOTCHER,SIDE PLATE 2
8 PISTON ROD 1
9 SLIDER PIN 1
10 BOLTS FOR SIDE PLATE , NOTCHER & CYLINDER HEAD 3
11 NUTS FOR SIDE PLATE  BOLTS 5
12 NUT FOR PISTON ROD 1
13 OIL SEAL FOR PISTON 1
14 PISTON  1
15 CONICAL SPRING FOR PISTON 1
16 CYLINDER HEAD 1
17 CYLINDER BODY 1
18 SCREW FOR CYLINDER HEAD 4
19 AIR INLET NUT 1
20 C-PIN-1 1
21 SERRATED WASHER 4
22 TRIGGER 1
23 TRIGGER LINK 1
24 VALVE BODY 1
25 VALVE BODY WASHER 2
26 WASHER LOCK(LONG) 1
27 VALVE POPPET WASHER 2
28 VALVE POPPET 1
29 C-PIN-2 1
30 C-PIN-3 1
31 WASHER LOCK(SHORT) 1
32 SPRING FOR VALVE 1
33 SPRING CAP 1
34 O-RING FOR VALVE BODY 1
