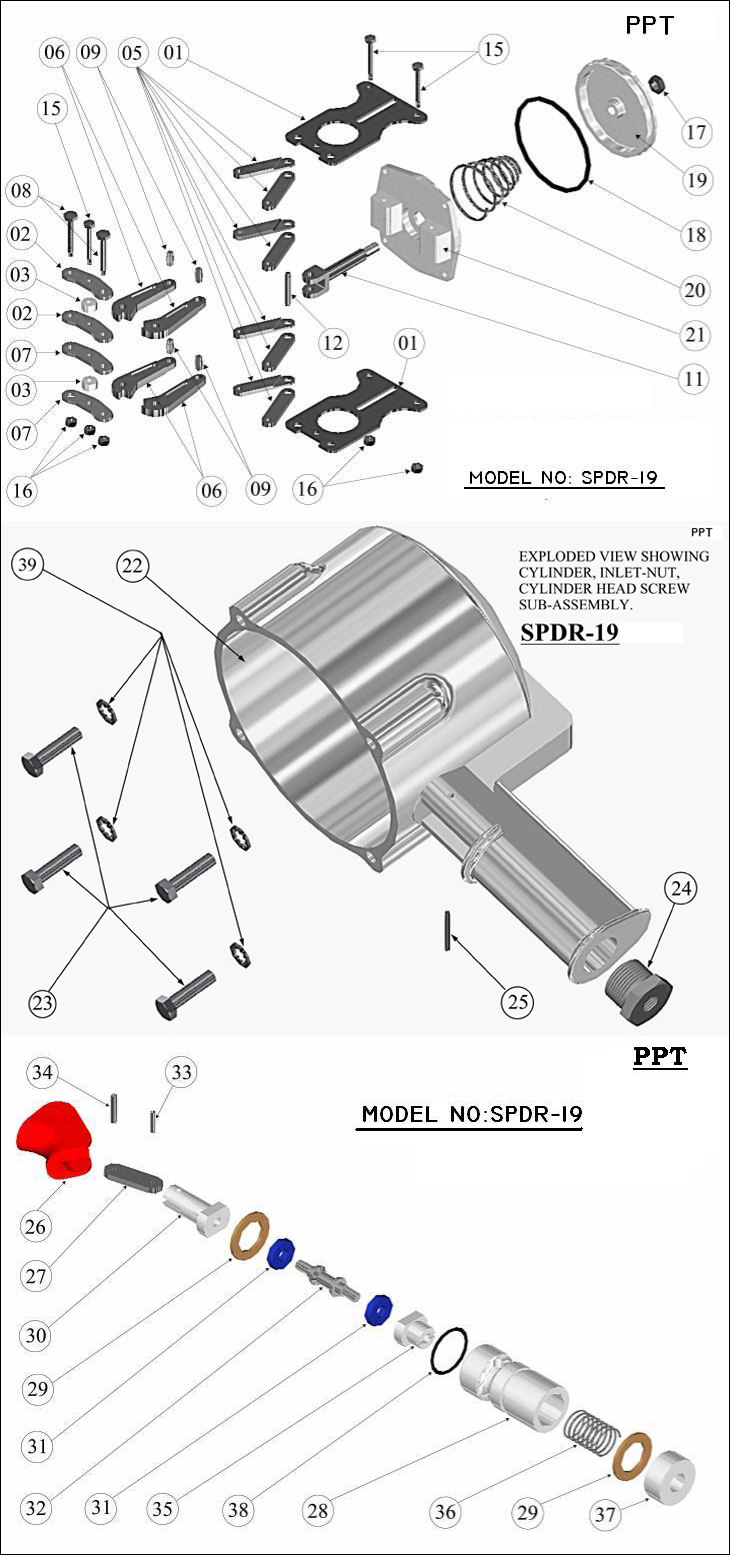

MODELNO.: SPDR-19


PART LIST OF SPDR-19

JAW-LINK-PISTON  SUB-ASSEMBLY





INDEX

Part Name

Quantity







01

SIDE PLATE

2







02

NOTCHER PLATE (TYPE-A)

2







03

SPACER FOR NOTCHER AND SIDE PLATE

2







05

LINKs

8







06

JAW

4







07

NOTCHER PLATE (TYPE-B)

2







08

JAW PIN

2







09

JAW-LINK PIN

4







11

PISTON ROD

1







12

SLIDER PIN

1







15

BOLTS FOR SIDE PLATE & NOTCHER

3







16

HALF HEIGHT NUTS FOR SIDE PLATE & NOTCHER

5







17

NUT FOR PISTON ROD

1







18

OIL SEAL FOR PISTON

1







19

PISTON

1







20

CONICAL SPRING FOR PISTON

1







21

CYLINDER HEAD

1







CYLINDER  SUB-ASSEMBLY







22

CYLINDER BODY

1







23

SCREWS FOR CYLINDER HEAD

4







24

AIR INLET NUT

1







25

‘C’ PIN – 1

1







39

SERRATED WASHER

4







VALVE  SUB-ASSEMBLY







26

TRIGGER

1







27

TRIGGER LINK

1







28

VALVE BODY

1







29

VALVE BODY WASHER

2







30

WASHER LOCK (LONG)

1







31

VALVE POPPET-WASHER

2







32

VALVE POPPET

1







33

‘C’ PIN – 2

1







34

‘C’ PIN – 3

1







35

WASHER LOCK (SHORT)

1







36

SPRING FOR VALVE

1







37

SPRING CAP

1







38

‘O’ RING FOR VALVE BODY

1
