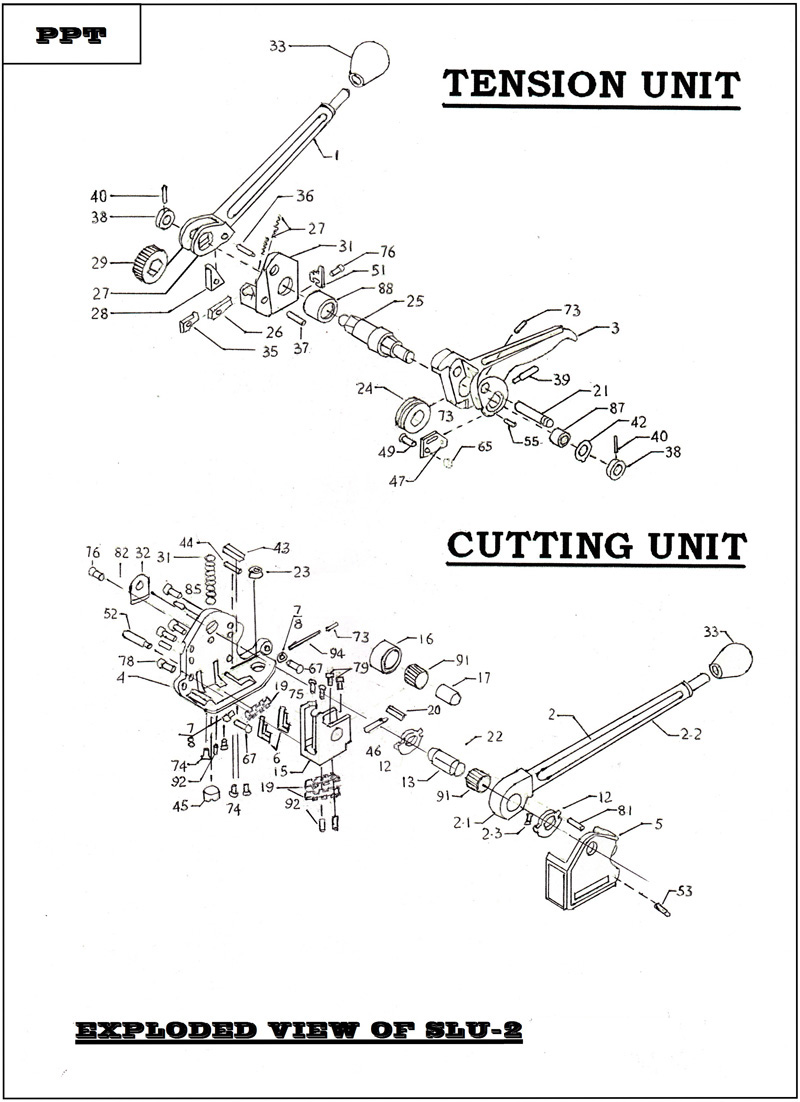

PART INDEX
|
PART NAME
|
QTY.
|
|
1
|
Tension Handle
|
1
|
|
2
2.1
2.2
2.3
|
Sealer Handle
Shoe
Arm
Stem
|
1
1
1
1
|
|
3
|
Feed wheel support
handle
|
1
|
|
4
|
Frame
|
1
|
|
5
|
Side cover
|
1
|
|
6
|
Strap lifter
|
2
|
|
12
|
Sealer handle
spacer
|
2
|
|
13
|
Excentric shaft
|
1
|
|
15
|
Punch holder
|
1
|
|
16
|
Cam follower
|
1
|
|
17
|
Punch holder shaft
|
1
|
|
19
|
Punch
|
3
|
|
20
|
Cutter blade
|
1
|
|
21
|
Feed wheel support
shaft
|
1
|
|
22
|
Roll pin
|
1
|
|
23
|
Pressure pad
|
1
|
|
24
|
Feed wheel
|
1
|
|
25
|
Feed wheel shaft
|
1
|
|
26
|
Tension pawl A
|
1
|
|
27
|
Spring
|
3
|
|
28
|
Tension pawl B
|
1
|
|
29
|
Ratchet wheel
|
1
|
|
31
|
Support plate
|
1
|
|
32
|
Adjustment plate
|
1
|
|
33
|
Knob
|
2
|
|
34
|
Feed wheel supports
spring
|
1
|
|
35
|
Tension pawl C
|
1
|
|
36
|
Tension pawl shaft
|
1
|
|
37
|
Tension pawl shaft
|
1
|
|
38
|
Washer A
|
2
|
|
39
|
Adjustment screw
|
1
|
|
40
|
Pin
|
2
|
|
42
|
Washer B
|
1
|
|
43
|
Bush
|
1
|
|
44
|
Plate
|
2
|
|
45
|
Stopper
|
1
|
|
46
|
Screw
|
1
|
|
47
|
Guide arm A
|
1
|
|
48
|
Guide arm B
|
1
|
|
49
|
Screw
|
3
|
|
51
|
Strap guide 01
|
1
|
|
52
|
Screw
|
1
|
|
53
|
Side cover screw
|
1
|
|
54
|
Screw
|
1
|
|
55
|
Strap guide 02
|
1
|
|
65
|
Nylock nut
|
1
|
|
67
|
Screw
|
2
|
|
73
|
Roll pin M4 x 6
|
6
|
|
74
|
Screw M4 x 8
|
2
|
|
75
|
Screw M4 x 12
|
2
|
|
76
|
Screw M5 x 10
|
1
|
|
77
|
Screw M6 x 10
|
1
|
|
78
|
Screw M6 x 16
|
4
|
|
79
|
Screw M4 x 10
|
2
|
|
82
|
Washer
|
1
|
|
84
|
Roll pin 5 x 25
|
1
|
|
85
|
Roll pin 6 x 16
|
2
|
|
87
|
Small bearing
941/12
|
1
|
|
88
|
Large bearing
941/20
|
1
|
|
91
|
Needle bearing
|
1
|
|
92
|
Roll pin 3 x 9.8
|
3
|
|
94
|
Retaining wire diam.
1.4
|
1
|
