MODELNO.: S177L

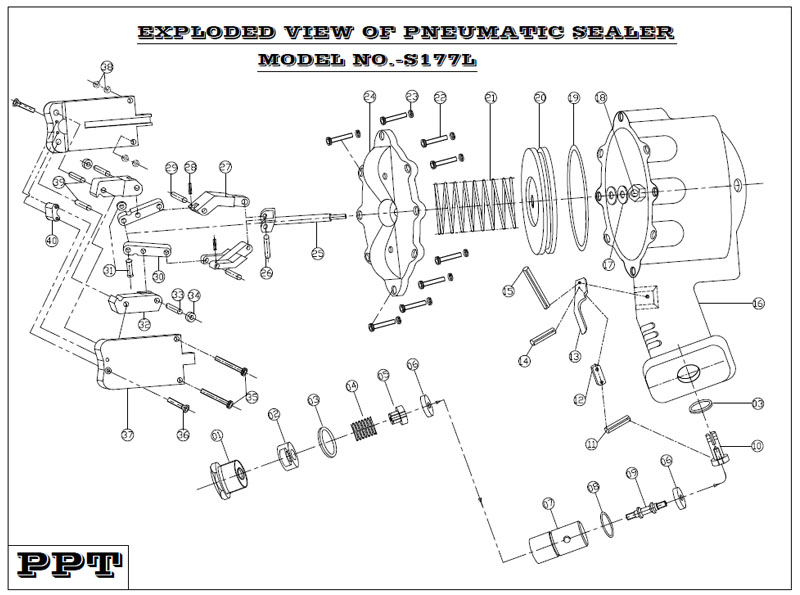

PART LIST OF S177L

INDEX NO.

PART NAME

QTY

1

AIR INLET NUT

1

2

SPRING CAP

1

3

VALVE BODY WASHER

2

4

SPRING FOR VALVE

1

5

WASHER LOCK(SHORT)

1

6

VALVE POPPET WASHER

2

7

VALVE BODY

1

8

O-RING FOR VALVE BODY

1

9

VALVE POPPET

1

10

WASHER LOCK(LONG)

1

11

C-PIN-1

1

12

TRIGGER LINK

1

13

TRIGGER

1

14

C-PIN-2

1

15

C-PIN-3

1

16

CYLINDER BODY

1

17

WASHER

2

18

NUT FOR PISTON ROD

1

19

OIL SEAL FOR PISTON

1

20

PISTON

1

21

CYLINDRICAL SPRING FOR PISTON

1

22

SCREW FOR CYLINDER HEAD

8

23

SPRING WASHER

8

24

CYLINDER HEAD

1

25

PISTON ROD

1

26

PIN FOR UPPER LINK

1

27

 UPPER LINK

2

28

C-PIN-4

2

29

PIN FOR LOWER LINK

2

30

LOWER LINK

2

31

RIVET PIN WITH WASHER FOR LOWER LINK

1

32

JAW

2

33

PIN TO HOLD JAW & LOWER LINK

2

34

SPACER

2

35

SCREW FOR SIDE PLATE

2

36

CSK SCREW FOR NOTCHER BLOCK

2

37

SIDE PLATE

2

38

NUTS FOR SIDE PLATE  BOLTS

2

39

PIN TO HOLD JAW & SIDE PLATES

2

40

NOTCHER BLOCK

1
