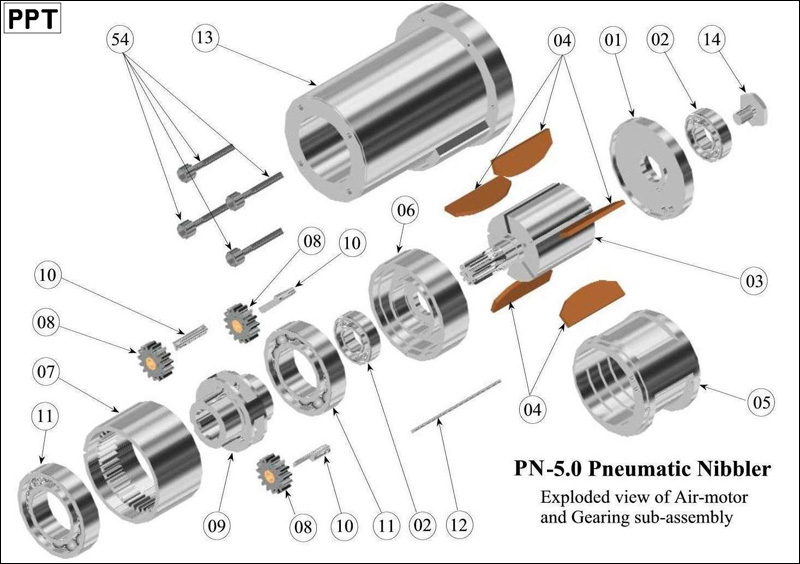

AIR-MOTOR AND GEARING SUB-ASSEMBLY
|
|
SERIAL
NO.
|
PART
NAME
|
Quantity
|
|
01
|
END
COVER-1
|
1
|
|
02
|
BALL
BEARINGS, 6003-2Z, skf OR
EQUIVALENT
|
2
|
|
03
|
ROTOR
WITH 1.5M SUN-PINION
|
1
|
|
04
|
ROTOR
VANES
|
5
|
|
05
|
AIR-CYLINDER
|
1
|
|
06
|
END
COVER-2
|
1
|
|
07
|
1.5M
INTERNAL GEAR
|
1
|
|
08
|
1.5M
PLANET PINIONS WITH BUSH
|
3
|
|
09
|
PLANET
HOLDER
|
1
|
|
10
|
PINS
FOR PLANET PINIONS
|
3
|
|
11
|
BALL
BEARINGS, 6007-2Z, skf OR
EQUIVALENT
|
2
|
|
12
|
LOCATING
PIN FOR MOTOR & INTERNAL GEAR
|
1
|
|
13
|
HOUSING
FOR MOTOR & GEARING (Machining Drg.)
|
1
|
|
14
|
BEARING
LOCKING SCREW FOR ROTOR (3/8” UNF)
|
1
|
|
54
|
BOLTS
FOR MOTOR & CRANK HOUSING (1/4” BSW)
|
4
|
|
|
|
|
|

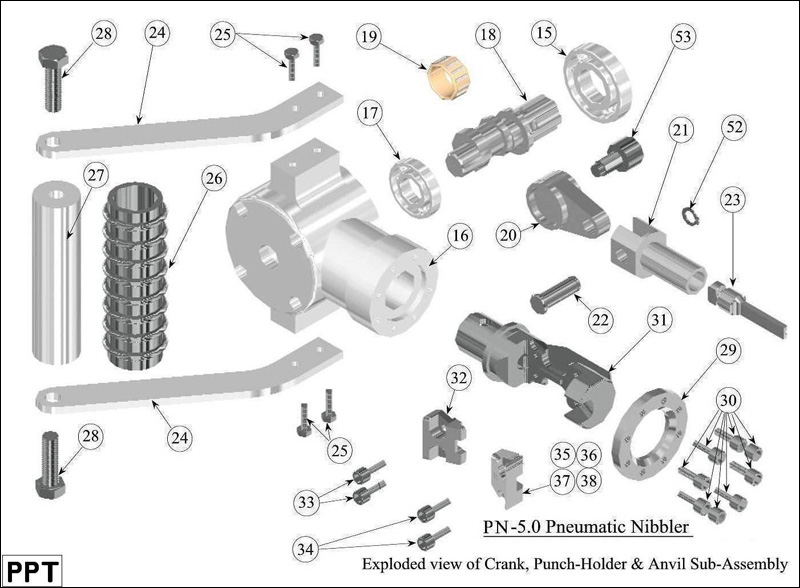

CRANK, PUNCH-HOLDER AND ANVIL SUB-ASSEMBLY
|
|
|
|
|
|
SERIAL
NO.
|
PART
NAME
|
Quantity
|
|
15
|
BALL
BEARINGS, EE-8, skf OR EQUIVALENT
|
1
|
|
16
|
HOUSING
FOR CRANK-SHAFT
(MACHINING DRG.)
|
1
|
|
17
|
BALL
BEARINGS, EE-5, skf OR EQUIVALENT
|
1
|
|
18
|
CRANK
SHAFT
|
1
|
|
19
|
NEEDLE
BEARING WITH FLEXIBLE CAGE (STRIP)
|
1
|
|
20
|
CRANK
LINK
|
1
|
|
21
|
PUNCH
HOLDER
|
1
|
|
22
|
CONNECTING
PIN
|
1
|
|
23
|
PUNCH
|
1
|
|
24
|
HANDLE
PLATES
|
2
|
|
25
|
SCREWS
FOR HANDLE PLATES
|
4
|
|
26
|
HANDLE
GRIP (RUBBER)
|
1
|
|
27
|
HANDLE
GRIP INSERT (ALUMINIUM)
|
1
|
|
28
|
SCREWS
FOR HANDLE GRIP INSERT
|
2
|
|
29
|
LOCKING
FLANGE
|
1
|
|
30
|
SCREWS
FOR LOCKING FLANGE
|
8
|
|
31
|
ANVIL
|
1
|
|
32
|
GUIDE
FOR PUNCH
|
1
|
|
33
|
SCREWS
FOR GUIDE
|
2
|
|
34
|
SCREWS
FOR DIE
|
2
|
|
35
|
DIE
FOR 1-2mm THICK STEEL
|
1
|
|
36
|
DIE
FOR 2-3mm THICK STEEL
|
1
|
|
37
|
DIE
FOR 3-5mm THICK STEEL
|
1
|
|
38
|
DIE
FOR 7mm THICK ALUMINIUM
|
1
|
|
52
|
CIRCLIP
FOR CONNECTING PIN
|
1
|
|
53
|
LOCKING
SCREW FOR ANVIL
|
1
|
|
|
|
|
|

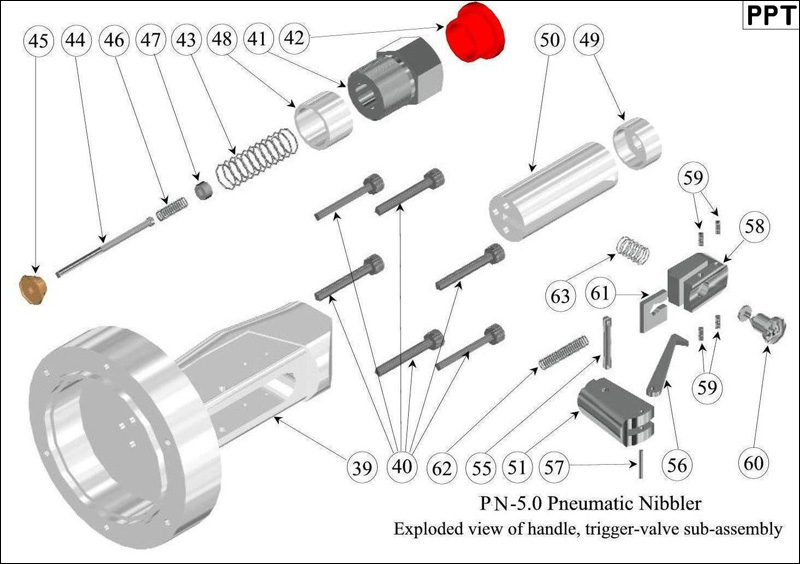

BACK-COVER-HANDLE AND TRIGGER-VALVE
SUB-ASSEMBLY
|
|
|
|
|
|
SERIAL
NO.
|
PART
NAME
|
Quantity
|
|
39
|
REAR
HANDLE AND TRIGGER-VALVE HOUSING
|
1
|
|
40
|
SHC
SCREWS FOR REAR HANDLE, 2-BA x 32mm L
|
6
|
|
41
|
ADAPTER
FOR NIPPLE
|
1
|
|
42
|
ADAPTOR
DUST-CAP
|
1
|
|
43
|
VALVE
SPRING
|
1
|
|
44
|
VALVE
PIN
|
1
|
|
45
|
VALVE
CAP
|
1
|
|
46
|
VALVE-PIN
SPRING
|
1
|
|
47
|
VALVE-PIN
NUT
|
1
|
|
48
|
SPACER
|
1
|
|
49
|
VALVE
BODY
|
1
|
|
50
|
VALVE
BUSH
|
1
|
|
51
|
TRIGGER
|
1
|
|
55
|
TRIGGER
PIN
|
1
|
|
56
|
LEVER
|
1
|
|
57
|
LEVER
PIN
|
1
|
|
58
|
PAWL
BLOCK
|
1
|
|
59
|
GRUB
SCREW
|
4
|
|
60
|
RELEASE
BUTTON
|
1
|
|
61
|
LOCK
PLATE
|
1
|
|
62
|
PAWL
BLOCK SIDE-SPRING
|
1
|
|
63
|
PAWL
BLOCK BOTTOM-SPRING
|
1
|
