MODEL NO.: PFT – 114

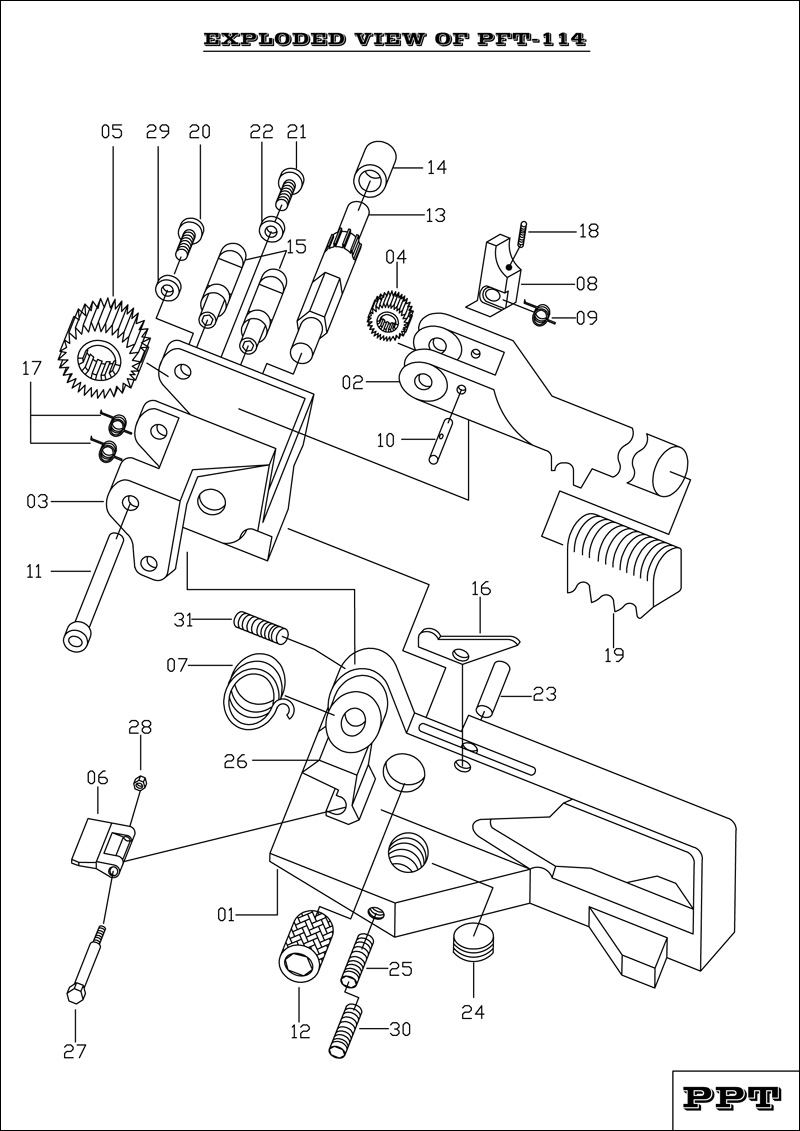

PART LIST OF PFT – 114

Index No.

Part Name

Qty.

1

Base Frame Assy.

1

2

Handle

1

3

Roller Frame

1

4

Driving Gear

1

5

Driven Gear

1

6

Strap Guide

1

7

Roller Frame Spring

1

8

Handle Pawl

1

9

Handle Pawl Spring

1

10

Handle Pawl Pin

1

11

Spindle

1

12

Roller

1

13

Roller Shaft

1

14

Bush

1

15

Ratchet Pawl

2

16

Handle Lever

1

17

Ratchet Pawl Spring

2

18

Handle Pawl Screw

1

19

Gripper

1

20

Spindle Screw

1

21

Bush support Screw

1

22

Bush Support Washer

1

23

Dowel Pin

1

24

Pressure Pad

1

25

Back Pressure Pad Screw

1

26

Strap Guide Holder

1

27

Strap Guide Bolt

1

28

Strap Guide Nut

1

29

Spindle Washer

1

30

Front Pressure Pad Screw

1

31

Strap Guide Bolt Locking Screw

1
