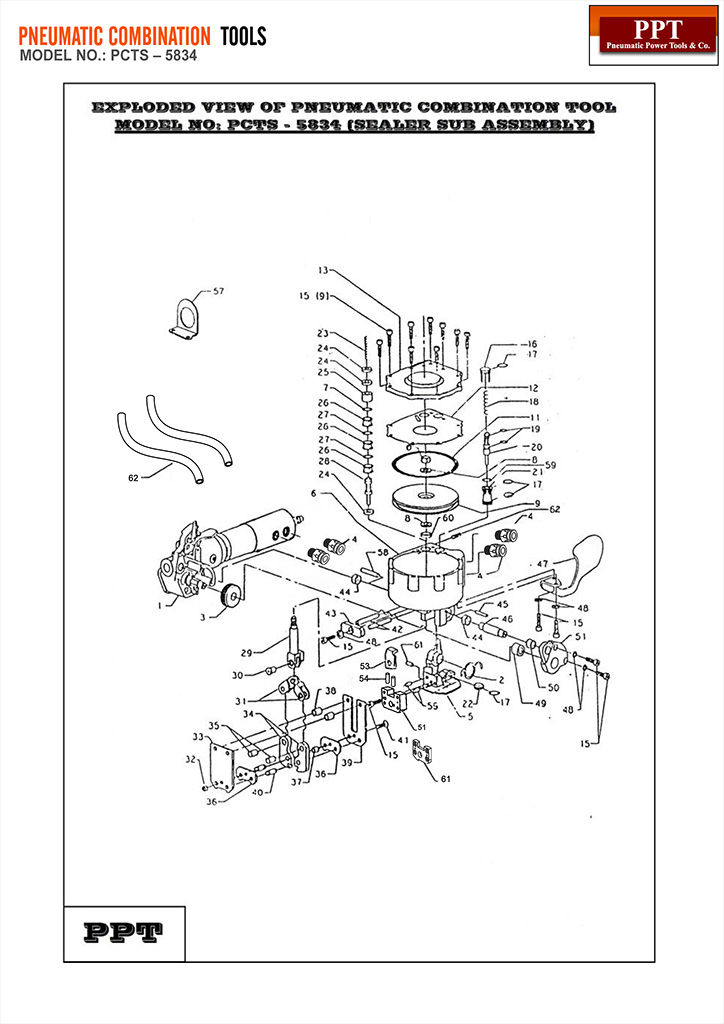

Index

Part Name

Qty.

1

TENSIONER SUB ASSEMBLY

1

2

ROLLER FRAME SPRING

1

3

ROLLER

1

4

ADAPTAR NIPPLE

4

5

ROLLER FRAME

1

6

CYLINDER

1

7

“O” RING

1

8

PISTON SUPPORT WASHER

1

9

PISTON

1

10

PISTON SUPPORT NUT

1

11

PISTON “O” RING

1

12

CYLINDER COVER GASKET

1

13

CYLINDER COVER

1

14

SHC SCREW M5

15

15

TENSIONER VALVE SPACER

1

16

“O” RING

4

17

TENSIONER VALVE SPRING

1

18

TENSIONER VALVE “O” RING

2

19

TENSIONER VALVE

1

20

TENSIONER VALVE SLEEVE

3

21

PRESSURE PAD

1

22

SEALER VALVE SPRING

1

23

SEALER VALVE SEAL

3

24

SEALER VALVE SPACER

1

25

SEALER VALVE SLEEVE

3

26

SEALER VALVE “O” RING

2

27

SEALER VALVE STEM

1

28

RAM

1

29

RAM PIN

1

30

SEALER LINK

2

31

LOCK NUT FOR NOTCHER SCREW

1

32

FRONT SIDE PLATE

1

33

JAW

2

34

SEALER LINK PIN

2

35

NOTCHER

2

36

NOTCHER SPACER

1

37

SIDE PLATE SPACER

2

38

REAR SIDE PLATE

1

39

JAW PIN

2

40

NOTCHER SCREW

1

41

SIDE PLATE PIN

2

42

SPACER (SEALER)

1

43

BUSH FOR ROLLER FRAME PIN

2

44

TAPER PIN

1

45

ROLLER FRAME PIN

1

46

RELEASE LEVER

1

47

LOCK WASHER (FOR M5 SCREW)

5

48

OUTER LINK BUSH

1

49

BEARING FOR ROLLER FRAME PIN

1

50

OUTER LINK

1

51

KNIFE HOLDER

1

52

KNIFE SPRING

1

53

KNIFE

1

54

KNIFE HOLDER GUIDE PIN

2

55

HANGER BRACKET

1

56

ROLL PIN FOR HANGER

1

57

“O” RING (TENSION VALVE SLEEVE SUPPORT)

1

58

DOUBLE ACTING “O” RING

1

59

DOWEL PIN

1

60

SOCKET HEAD SET SCREW

1

61

STRAP GUIDE

1

62

PIPE

2

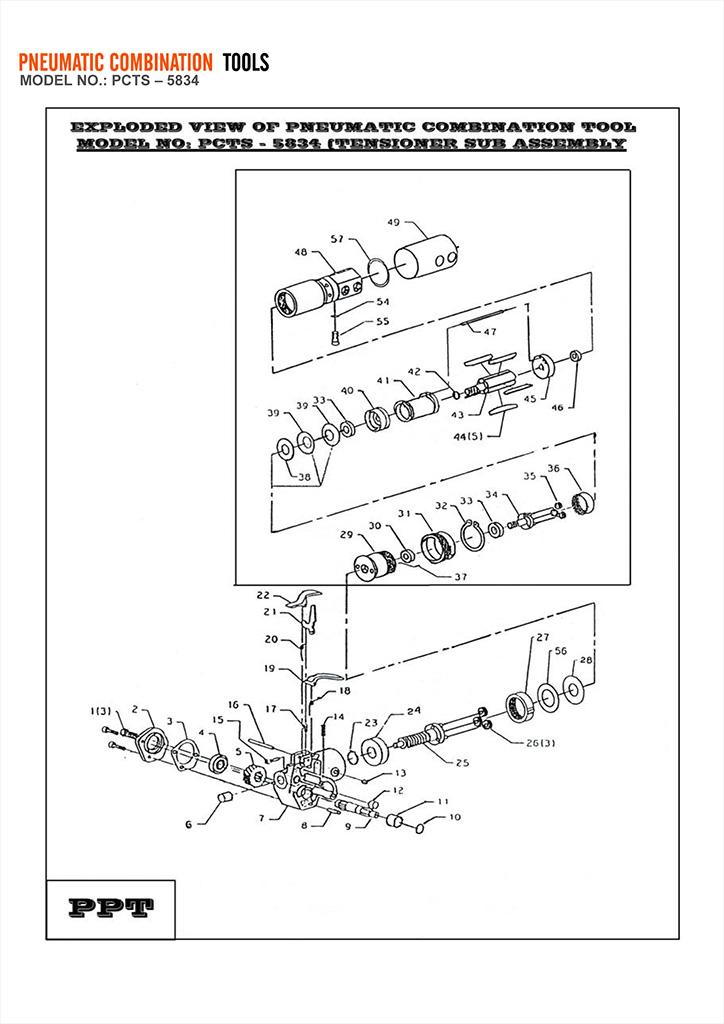

Index

Part Name

Qty.

1

M5 SCREW FOR WORM HOUSING COVER

3

2

WORM HOUSING COVER

1

3

GASKET FOR WORM HOUSING

1

4

BEARING NO 1

1

5

WORM WHEEL

1

6

BEARING NO 3

1

7

WORM HOUSING

1

8

DOWEL PIN

1

9

ROLLER SHAFT

1

10

'O' RING

1

11

BEARING NO 2

1

12

BEARING NO 4

1

13

INTERNAL GEAR LOCK SCREW

1

14

SET SCREW (SOCKET HEAD)

1

15

LOCK LEVER PIN

1

16

LEVER PIVOT PIN

1

17

SPRING

1

18

TENSION TRIGGER SPRING

1

19

TENSIONER TRIGGER

1

20

SEALER TRIGGER SPRING

1

21

TENSIONER TRIGGER LOCK

1

22

SEALER TRIGGER

1

23

CIRCLIP 1

1

24

BEARING NO 5

1

25

WORM SHAFT

1

26

IDLE GEAR NO 1

3

27

INTERNAL GEAR NO 1

1

28

SPACER

1

29

GEAR HOUSING

1

30

BUSH

1

31

RING NUT

1

32

CIRCLIP 2

1

33

BEARING NO 6

2

34

PLANET HOLDER 1

1

35

IDLE GEAR NO 2

1

36

INTERNAL GEAR NO 2

1

37

NEEDLE BEARING

1

38

WASHER

1
