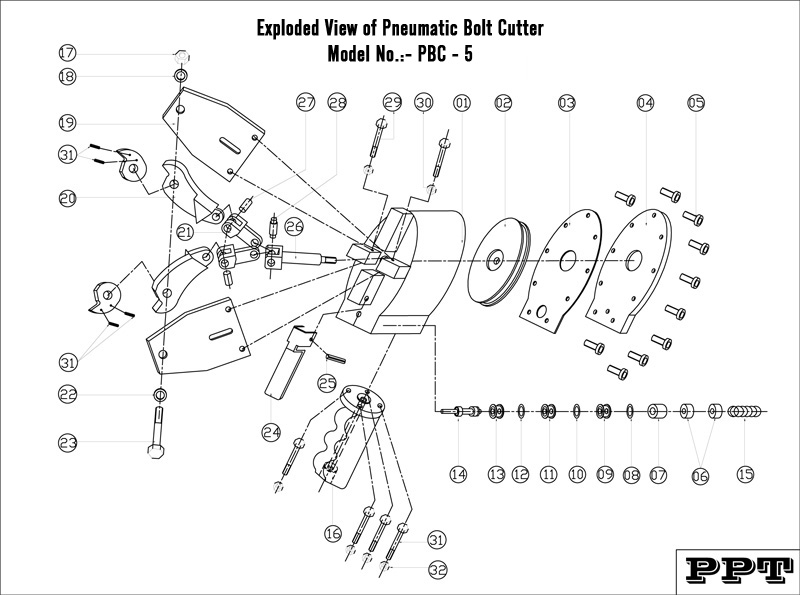

MODEL NO.: PBC – 5

PART LIST OF PBC – 5
INDEX  NO. PART NAME QTY
1 CYLINDER BODY 1
2 PISTON 1
3 PACKING 1
4 CYLINDER COVER 1
5 SOC.HD BOLT TO FIX CYL. WITH COVER. 10
6 RUBBER WASHER 2
7 SPACER 1
8 `O`RING (1) 1
9 VALVE BODY(1) 1
10 `O`RING (2) 1
11 VALVE BODY(2) 1
12 `O`RING (3) 1
13 VALVE BODY(3) 1
14 VALVE POPET 1
15 SPRING FOR VALVE 1
16 MACHINE HANDLE 1
17 NUT TO FIX JAWS WITH SIDE PLATE 1
18 WASHER FOR SIDE PLATE 2
19 SIDE PLATE 2
20 JAWS 2
21 JAW LINK 2
22 WASHER FOR PISTON ROD 1
23 BOLT TO FIX JAWS WITH SIDE PLATE 1
24 TRIGGER 1
25 `C` PIN 1
26 PISTON ROD 1
27 PIN FOR JAW 2
28 PIN FOR PISTON ROD 1
29 BOLT FOR SIDE PLATE 2
30 NUT FOR SIDE PLATE 2
31 SOC. HD BOLT FOR HANDLE 4
32 NUT FOR PISTON ROD 1
