MODEL NO.: KPBC – 8

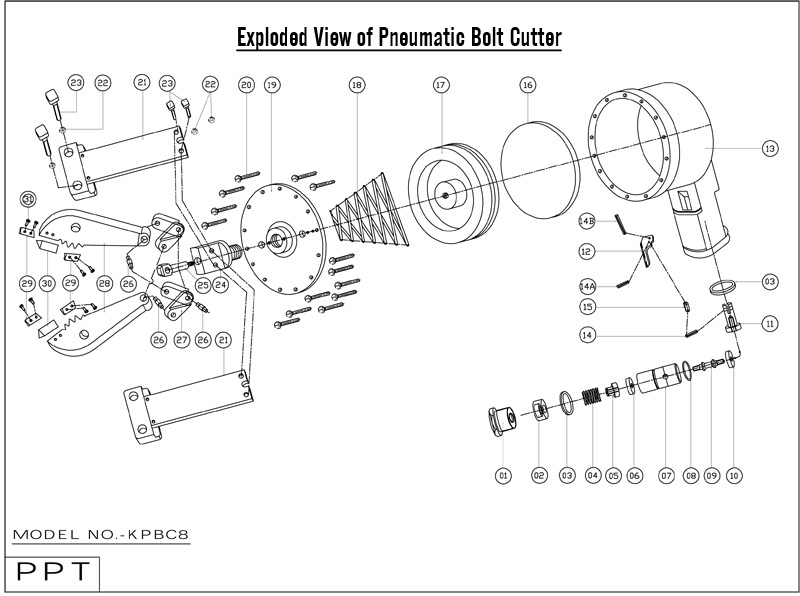

PART LIST OF KPBC – 8
SL NO. PART NAME QTY.
1 AIR INLET NUT 1
2 SPRING CAP 1
3 VALVE BODY WASHER 2
4 SPRING FOR VALVE 1
5 WASHER LOCK (SHORT) 1
6 VALVE POPET WASHER-1 1
7 VALVE BODY 1
8 `O` RING FOR VALVE BODY 1
9 VALVE POPET 1
10 VALVE POPET WASHER-2 2
11 WASHER LOCK (LONG) 1
12 TRIGGER 1
13 CYLINDER BODY 1
14 `C` PIN-1 1
14A `C` PIN-2 1
14B `C` PIN-3 1
15 TRIGGER LINK 1
16 OIL SEAL FOR PISTON 1
17 PISTON 1
18 CONICAL SPRING 1
19 CYLINDER COVER 1
20 BOLT TO FIX CYL. BODY WITH COVER 14
21 SIDE PLATE 2
22 NUT FOR SIDE PLATE 4
23 BOLT FOR SIDE PLATE 4
24 PISTON CONNECTING BLOCK 1
25 PISTON ROD 1
26 PIN FOR LINK 3
27 LINK 4
28 JAW 2
29 CUTTING TIP HOLDING BLOCK 4
30 CUTTING TIP  2
31 SOC. HD. BOLT FOR JAW  TIP 8
