MODEL NO.: HTUS – 50C

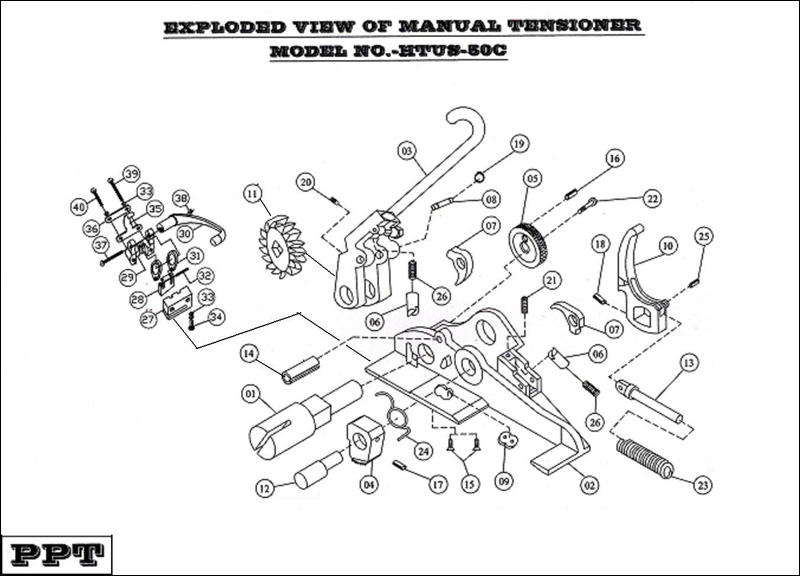

PART LIST OF HTUS – 50C

INDEX NO.

PART NAME

QUANTITY







01

Windlass Shaft

1







02

Base Frame

1







03

Tensioning Handle Assy.

1







04

Gripper

1







05

Windlass Cap

1







06

Ratchet Pin For Handle & Base

2







07

Ratchet Pawl

2







08

Ratchet Pawl Pin

1







09

Pressure Pad

1







10

Handle Lock Lever

1







11

Ratchet Gear

1







12

Cam Spindle

1







13

Lever Spring Pin

1







14

Strap Guide Pin

1







15

CSK Screw for Pressure Pad

2







16

“C” Pin for Windlass Cap

1







17

“C” Pin for Gripper

1







18

“C” Pin for Handle Lever Lock

1







19

Circlip for Ratchet Pawl Pin

1







20

Set Screw for Tensioning Handle

1







21

Set Screw for Base Frame

1







22

S.H.C Screw for Windlass Cap

1







23

Lever Spring

1







24

Gripper Spring

1







25

“C” Pin for Lever Spring Pin

1







26

Ratchet Spring

2







27

Base for cutter

1







28

Blade for Cutter

1







29

Blade Holder Frame

1







30

Cutter Handle

1







31

Ring for Handle

2







32

Pin for Blade

1







33

Spring Washer

4







34

Bolt for Base

1







35

Guard Plate-1

1







36

Guard Plate-2

1







37

Bolt for Handle

1







38

Nut for Handle Bolt

1







39

Long Bolt for Frame

1







40

Short Bolt for Frame

1
