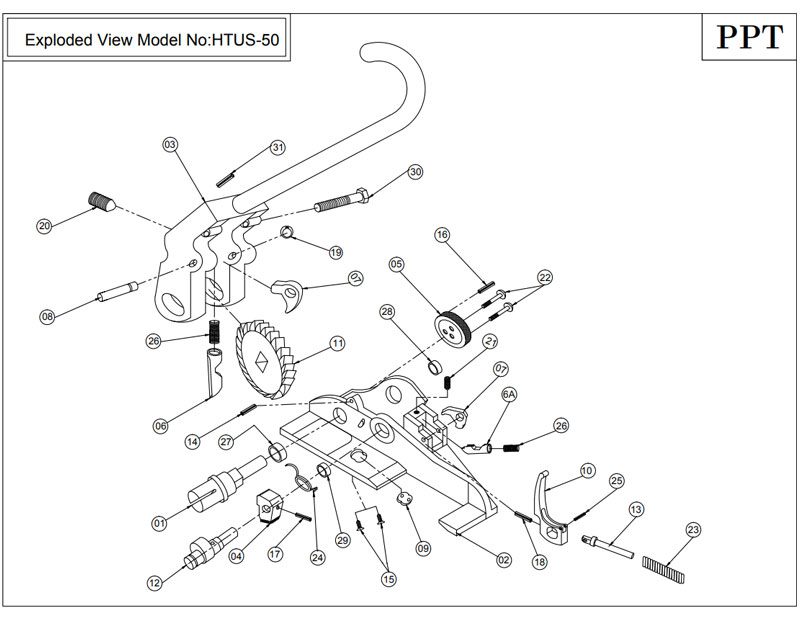

MODEL NO.: HTUS – 50


PART LIST OF HTUS – 50

INDEX NO.

PART NAME

QUANTITY

01

Windlass Shaft

1

02

Base Frame

1

03

Tensioning Handle Assy.

1

04

Gripper

1

05

Windlass Cap

1

06

Ratchet Pin For Handle

1

06A

Ratchet Pin For Base

1

07

Ratchet Pawl

2

08

Ratchet Pawl Pin

1

09

Pressure Pad

1

10

Handle Lock Lever

1

11

Ratchet Gear

1

12

Cam Spindle

1

13

Lever Spring Pin

1

14

Strap Guide Pin

1

15

CSK Screw for Pressure Pad

2

16

“C” Pin for Windlass Cap

1

17

“C” Pin for Gripper

1

18

“C” Pin for Handle Lever Lock

1

19

Circlip for Ratchet Pawl Pin

1

20

Set Screw for Tensioning Handle

1

21

Set Screw for Base Frame

1

22

S.H.C Screw for Windlass Cap

2

23

Lever Spring

1

24

Gripper Spring

1

25

“C” Pin for Lever Spring Pin

1

26

Ratchet Spring

2

27

Bush for windlass shaft ( big )

1

28

Bush for windlass shaft ( small )

1

29

Bush for cam spindle

1

30

Bolt for handle locking

1

31

'C' Pin for handle locking

1
