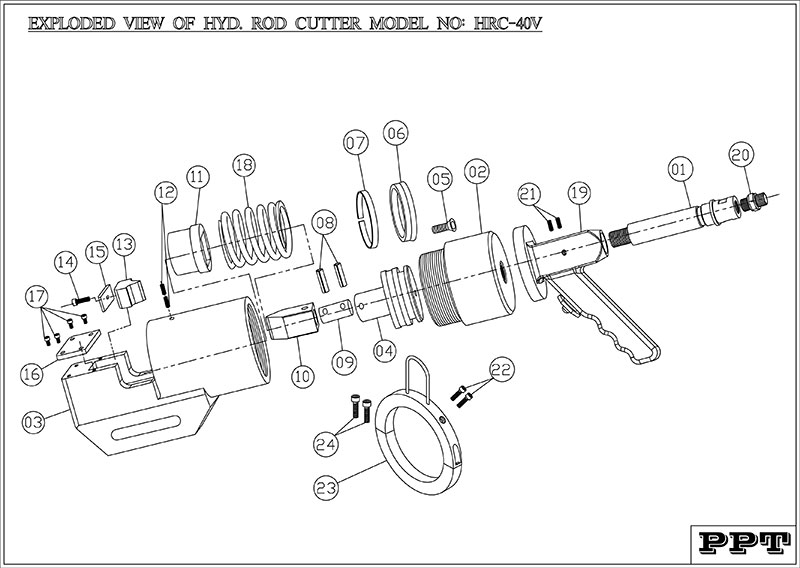

MODEL NO.: HRC – 40V

PART LIST OF HRC – 40V
INDEX NO. PART NAME QTY.
1 LONG NIPPLE 1
2 CYLINDER  1
3 ROD CUTTER BODY 1
4 PISTON 1
5 CSK BOLT FOR PISTON 1
6 U-CUP SEAL 1
7 BEARING SEAT 1
8 C-PIN 2
9 CONNECTOR 1
10 MOVING BLADE  1
11 BUSH 1
12 GRUB SCREW 2
13 FIXED BLADE 1
14 BOLT FOR FIXED BLADE 1
15 FIXED BLADE SUPPORT 1
16 UPPER COVER FOR FIXED BLADE 1
17 BOLTS FOR UPPER COVER 4
18  SPRING 1
19 HANDLE 1
20 HEX. NIPPLE 1
21 GRUB SCREW FOR HANDLE 2
22 BOLT FOR HANGING RING LOCATING 2
23 HANGING RING 1
24 BOLT FOR HANGING RING 2
