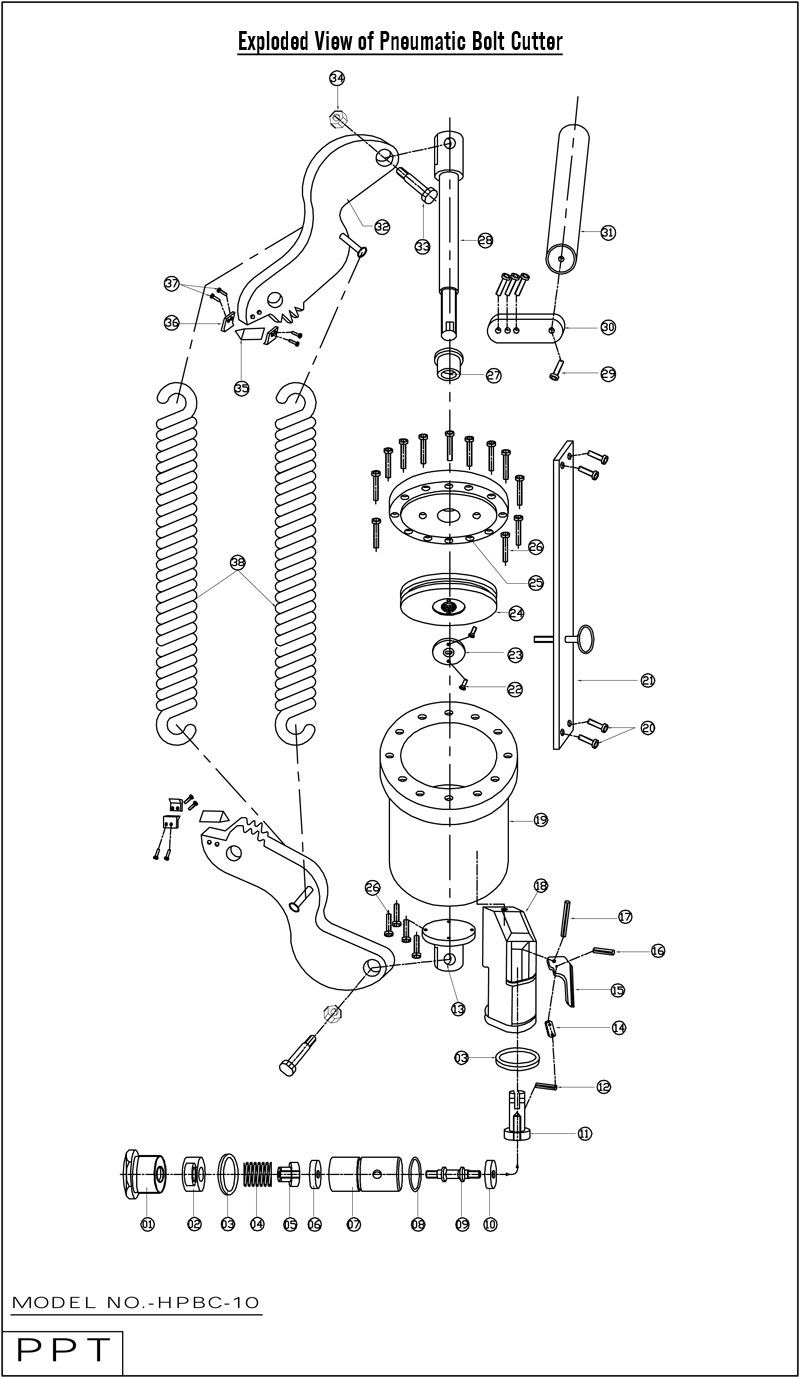

INDEX NO.
|
PART NAME
|
QTY.
|
|
1
|
AIR
INLET ONUT
|
1
|
|
2
|
SPRING
CAP
|
1
|
|
3
|
VALVE
BODY WASHER
|
2
|
|
4
|
SPRING
FOR VALVE
|
1
|
|
5
|
WASHER
LOCK (SHORT)
|
1
|
|
6
|
VALVE
POPET WASHER-1
|
1
|
|
7
|
VALVE
BODY
|
1
|
|
8
|
‘O’
RING FOR VALVE BODY
|
1
|
|
9
|
VALVE
POPET
|
1
|
|
10
|
VALVE
POPET WASHER-2
|
1
|
|
11
|
WASHER
LOCK (LONG)
|
1
|
|
12
|
‘C’-PIN-1
|
1
|
|
13
|
JAW
HOLDING FLANGE
|
1
|
|
14
|
TRIGGER
LINK
|
1
|
|
15
|
TRIGGER
|
1
|
|
16
|
‘C’-PIN-2
|
1
|
|
17
|
‘C’-PIN-3
|
1
|
|
18
|
MACHINE
HANDLE
|
1
|
|
19
|
CYLINDER
BODY
|
1
|
|
20
|
SOCKETED
HEAD BOLT-1
|
4
|
|
21
|
CYLINDER
BODY & FLANGE FIXIING FLAT
|
1
|
|
22
|
CSK
SCREW
|
2
|
|
23
|
COVER
PLATE
|
1
|
|
24
|
PISTON
|
1
|
|
25
|
CYLINDER
FLANGE
|
1
|
|
26
|
SOCKETED
HEAD BOLT-2
|
16
|
|
27
|
BUSH
FOR PISTON ROD
|
1
|
|
28
|
PISTON
ROD
|
1
|
|
29
|
SOCKETED
HEAD BOLT-3
|
4
|
|
30
|
FLAT
FOR HANDLE
|
1
|
|
31
|
PIPE
FOR HANDLE
|
1
|
|
32
|
JAW
|
2
|
|
33
|
JAW
HOLDING BOLT
|
2
|
|
34
|
NUT
FOR JAW HOLDING BOLT
|
2
|
|
35
|
REPLACABLE
CUTTER TIP
|
2
|
|
36
|
CUTTER
TIP HOLDING BLOCK
|
4
|
|
37
|
SOCKETED
HEAD BOLT-4 FOR TIP HOLDING
|
8
|
|
38
|
TENSION
SPRING
|
2
|
