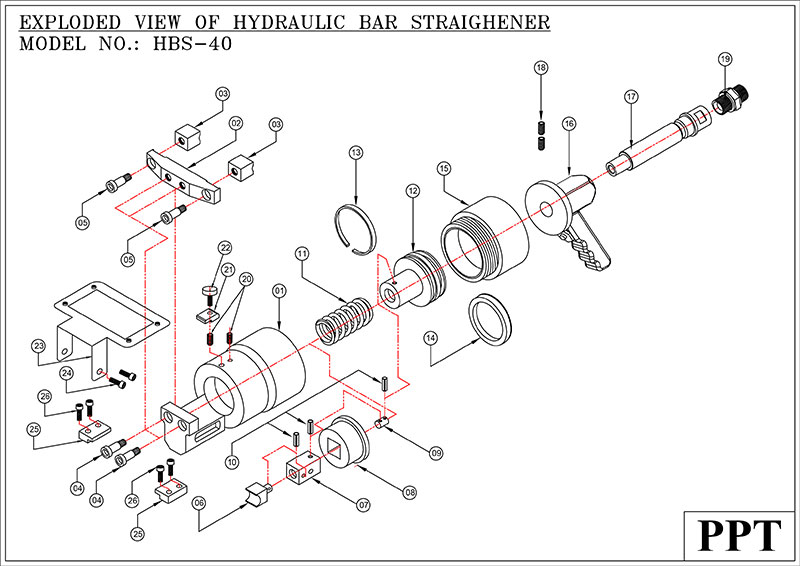

MODEL NO.: HBS – 40

PART LIST OF HBS – 40
INDEX NO. PART NAME QTY.
1 HYDRAULIC BAR STRAIGHTENER BODY 1
2 DIE HOLDING BRACKET 1
3 DIE 2
4 BOLT FOR DIE HOLDING BRACKET 2
5 BOLT FOR DIE FIXING 2
6 PUNCH 1
7 SQUARE BLOCK CONNECTOR 1
8 GUIDE BUSH 2
9 CONNECTOR 1
10 “C” PIN 3
11 COMPRESSION SPRING 1
12 PISTON WITH PISTON ROD 1
13 BEARING SEAT 1
14 U CUP SEAL 1
15 CYLINDER 1
16 HANDLE WITH PUSH SWITCH 1
17 LONG HYDRAULIC NIPPLE 1
18 GRUB SCREW 2
19 ADAPTOR 1
20 GRUB SCREW 2
21 SAFETY COVER LOCKING PLATE 1
22 KNOB FOR SAFETY COVER LOCKING PLATE 1
23 SAFETY COVER 1
24 BOLT FOR SAFETY COVER 2
25 MOUNTING BLOCK 2
26 BOLT FOR MOUNTING BLOCK 4
