All PPT Rod Cutters are designed for heavy duty rod cutting operations for various applications in steel industries and also for longer service life.

FEATURES

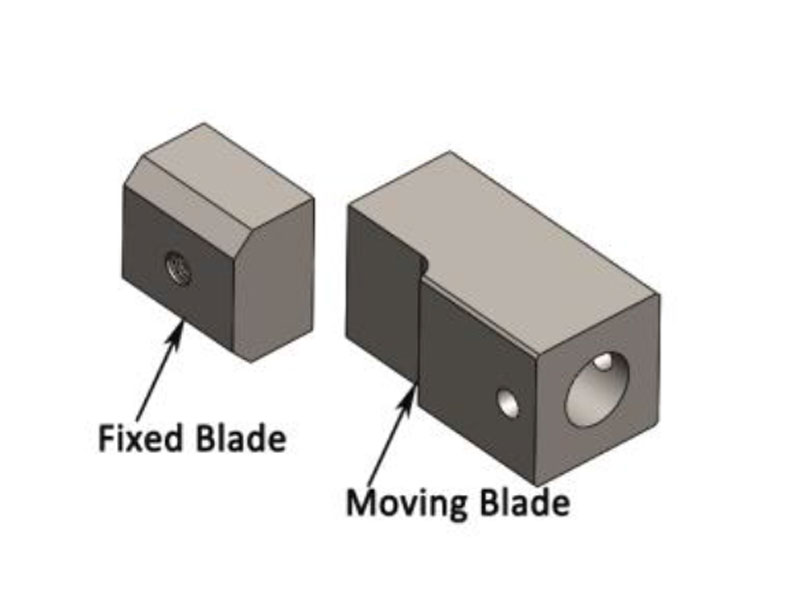

Forged alloy steel heat treated “C” frame type cylinder body used. Single return spring design Special quality sealing for specified pressure High wear resistant Moving cutter guide square bushing for accurate cutter alignment  Easy to operate & maintain Lighter in weight than Cast Steel design Unique design of cutters and special steel used for longer life  Wide range of Power Pack used for different application of the user requirement Single piece ram & piston design for easy maintenance  Suitable tool hanger fitted to positioning the tool at any angle for easy to operate

SPECIFICATIONS

Model No. Weight Length Width Height lb kg inch mm inch mm inch mm HSRC-30H 121-132 55-60 (Approx) 19.7 500 7.3 185 9.3 235

Model No. Dia. capacity (mm) Dia. Capacity (Inch.) Tensile strength  kg/mm2 Shear Strength kg/mm2 Cutting  Force reqd. (kgf) Cutting force generated by cutter kgf @ 500bar x3.7lpm HSRC-30H Ø30.0mm Ø1.18” 110 71.5 50547 61367 HSRC-30H Ø28.6mm Ø11 / 8’’ 110 71.5 45939.2 61367 HSRC-30H Ø25.4mm Ø1.0” 110 71.5 36234.0 61367 HSRC-30H Ø22.2mm Ø 7 /8 ” 110 71.5 27679.5 61367

NOTE

Considering shear strength to be 65% of tensile strength.
