All PPT Rod Cutters are designed for heavy duty rod cutting operations for various applications in steel industries and also for longer service life.

FEATURES

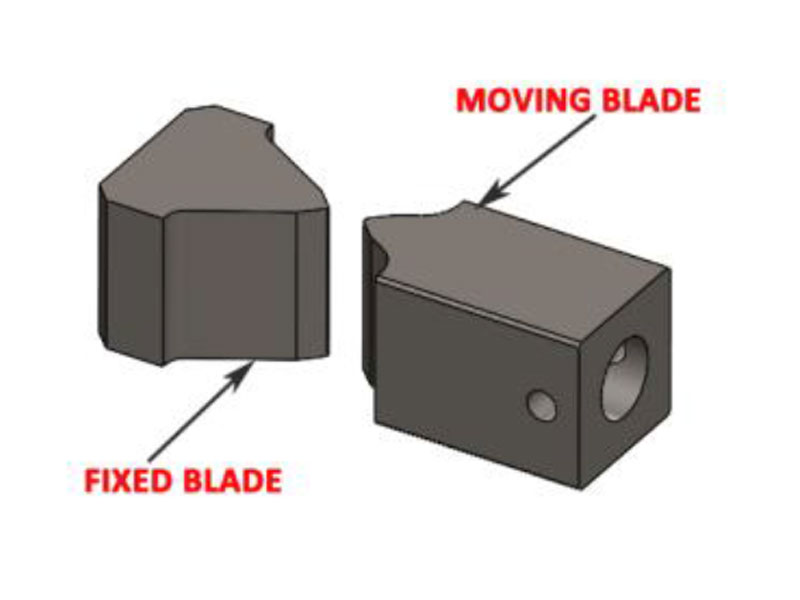

Forged alloy steel heat treated “C” frame type cylinder body used. Single return spring design Special quality sealing for specified pressure High wear resistant Moving cutter guide square bushing for accurate cutter alignment  Easy to operate & maintain Lighter in weight than Cast Steel design Unique design of cutters and special steel used for longer life  Wide range of Power Pack used for different application of the user requirement Single piece ram & piston design for easy maintenance  Suitable tool hanger fitted to positioning the tool at any angle for easy to operate.

SPECIFICATIONS

Model No. Weight Length Width Height lb kg inch mm inch mm inch mm HRC-20V 33.0 15.0 15.75 400 4.25 108 5.5 140

Model No. Dia. capacity (mm) Tensile strength  kg/mm2 Shear Strength kg/mm2 Cutting  Force reqd. (kgf) Cutting force generated by cutter kgf @ 500bar x3.7lpm HRC-20V 20mm 70 45.5 14296 15588 HRC-20V 16mm 110 71.5 14378 15588 HRC-20V 12mm 110 71.5 8087.5 15588

NOTE

Considering shear strength to be 65% of tensile strength. Radial Piston pump and directional controlled solenoid valve of capacity 500 bar, Imported from Switzerland. Make BIERI
