FEATURES
- Medium duty Manual Steel Strap Sealer.
- Double Notch reverse type (up cut) side action.
- Easy to operate & maintain.
- High strength Aluminum-alloy handle used.

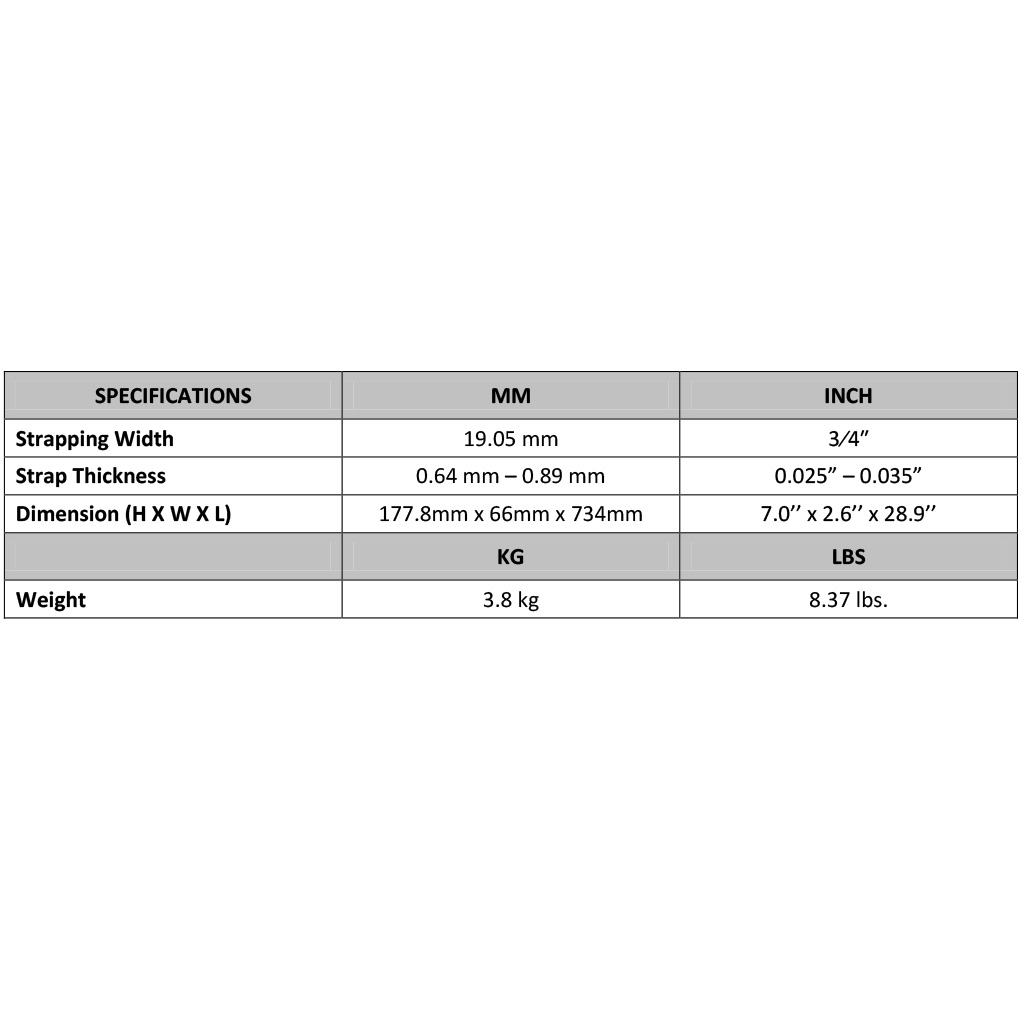

SPECIFICATIONS
- Item for use with: Steel Strapping Sealer
- Tool Power Source: Manual
- For Strapping Width: 19.05mm // 3/4”
- For Strapping Thickness: 0.64mm – 0.89mm // 0.025” – 0.035”
- Overall Height x Width x Length: 177.8mm x66mm x734mm // 7.0’’ x 2.6’’ x 28.9’’
- Material: Alloy Steel, Aluminium Alloy
- Weight: 3.8kg // 8.37lbs.
- Tool Joint Type: Double Notch
- Tool Seal Type: Snap On Seals
- Crimping: 2 Sided
- Joint Efficiency: 75 to 80%
OPERATIONAL MANUAL
- Hold the `SMDR-19` vertically, opened the Jaws & place the jaws across the seal. This seal is very important as the seal crimped the off-centre may cause the strap become loose & snap apart, possibly resulting in serious injury.
- Press the handle of the sealer together until the proper sealing done while keeping the sealer in vertical position.
- Remove the sealer & inspect the seal to verify the seal is properly holding the strap. The seal should have four impressions, two on each side. The notches should be centred on the seal. If impression isn`t properly formed, remove it & do it again with new seal & strap. Attempting to reseal in previous seal will not ensure a proper seal & will decrease the break strength.
- Never use the sealer to break the strap. Breaking the strap without the proper cutter may cause the strap to snap back towards the operator, possibly resulting a serious injury. This action will also cause damage to the sealer, which will require the sealer to be repaired or replaced at owner`s expense.
SAFETY INSTRUCTIONS
- Only trained personnel should operate `SMDR-19`.
- Wear Gloves, Safety shoe, Helmet & Goggle before starting operation.
- Keep fingers away from areas that can pinch or cut. These areas are primarily located at the front of the tool.
- Only use equipment recommended for the strap.`SMDR-19` is recommended only for 0.64mm to 0.89mm thick x 19.05mm width.
