FEATURES

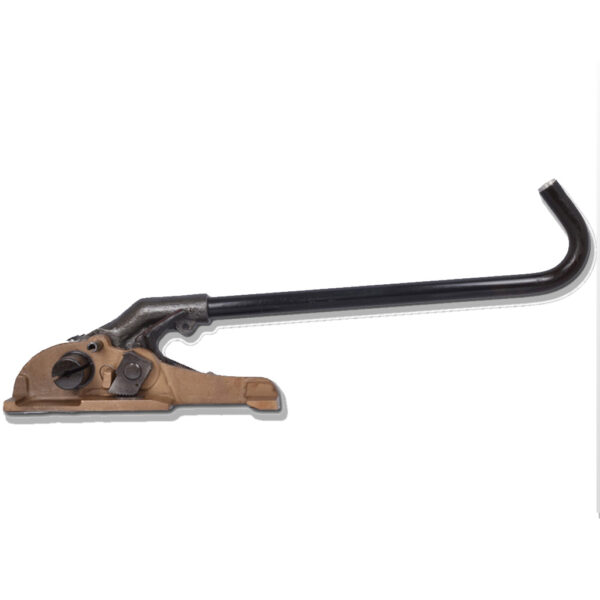

- Heavy duty windlass type Manual Steel Strap Tensioner
- Easy to operate and maintain
- Base is Aluminium Bronze casting. Moveable parts are made from high grade alloy steel and heat treated
- Pre-cut strap used
- Usefull for unitizing of objects in wagon,container,truck & ship lashing etc.
SPECIFICATIONS
Strap Thickness: 1.10 mm – 1.27mm/0.044”- 0.050”
Strap width: 31.75mm / 11/4”
Grade: High Tensile
Weight: 5.5 kg / 12.12lb
Dimension (L X W X H): 562 x 120 x 290mm / 22.12”x4.72”x11.41”
SAFETY INSTRUCTIONS
- Before using the tool, read the operating instructions carefully.
- Wear hand gloves, safety shoe, Helmet, goggles during operation.
- Do not stand in line with the strap while it is tensioned. The strap may break.
- Do not put your fingers into the windlass shaft & gripper area.
- Do not put your hand under the strap on the job while strap is being tensioned.
- Only use equipment recommended for the strap.`HTUS-50´ is recommended only for 1.10 mm to 1.27 mm thk. X 31.75 mm width.
